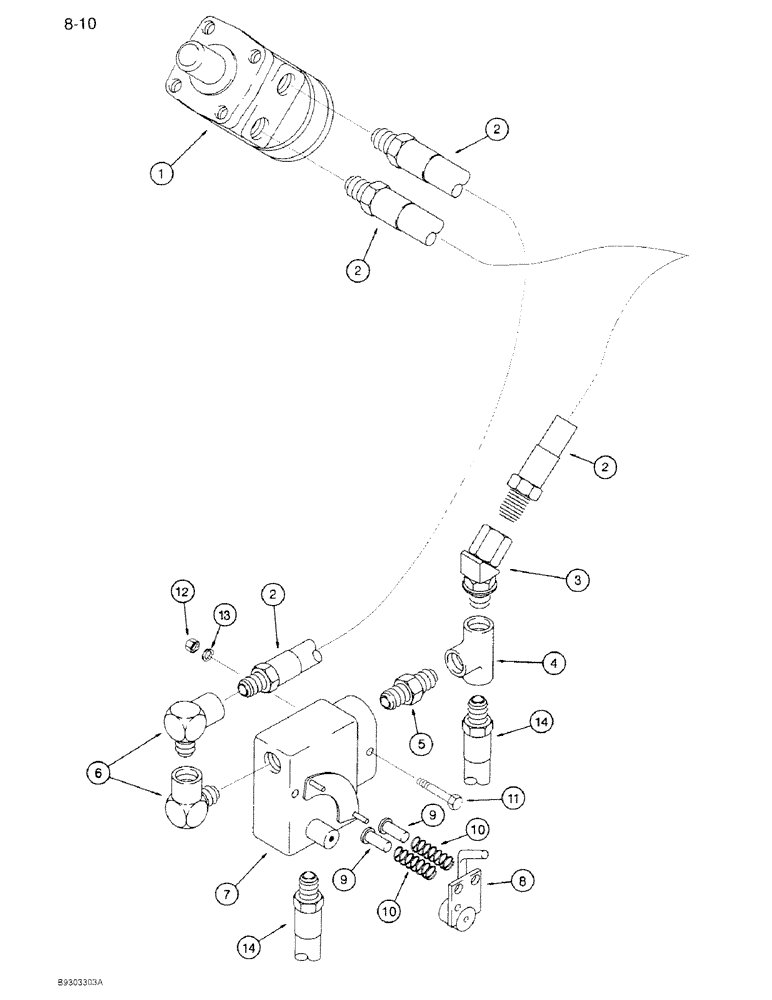

Запчасти Case IH 1250 (8-10) - HYDRAULIC AUGER FEEDER, 1250 MACHINES, P.I.N. 7001 AND AFTER (07) - HYDRAULICS

1

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.

2

57968C1

HYDRAULIC HOSE,12.70 mm ID x 406.40 mm

12.70 mm ID x 406.40 mm

2шт.

3

137894

ELBOW,45 Degree, 1/2" NPT Street

- pipe, 1/2 inch x 45 degree

1шт.

4

217-1163

TEE,1/2"-14 Female

- pipe, 1/2 inch

1шт.

5

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2 x 1-1/8 inch

1шт.

6

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- pipe, 1/2 inch x 90 degree

2шт.

7

145776C2

VALVE

- hydraulic

1шт.

8

145778C2

LEVER

- valve

1шт.

9

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

10

61080C1

SPRING

- lever

1шт.

11

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

1281170C1

HOSE

ASSEMBLY - hydraulic, 1/2 x 200 inches

2шт.
