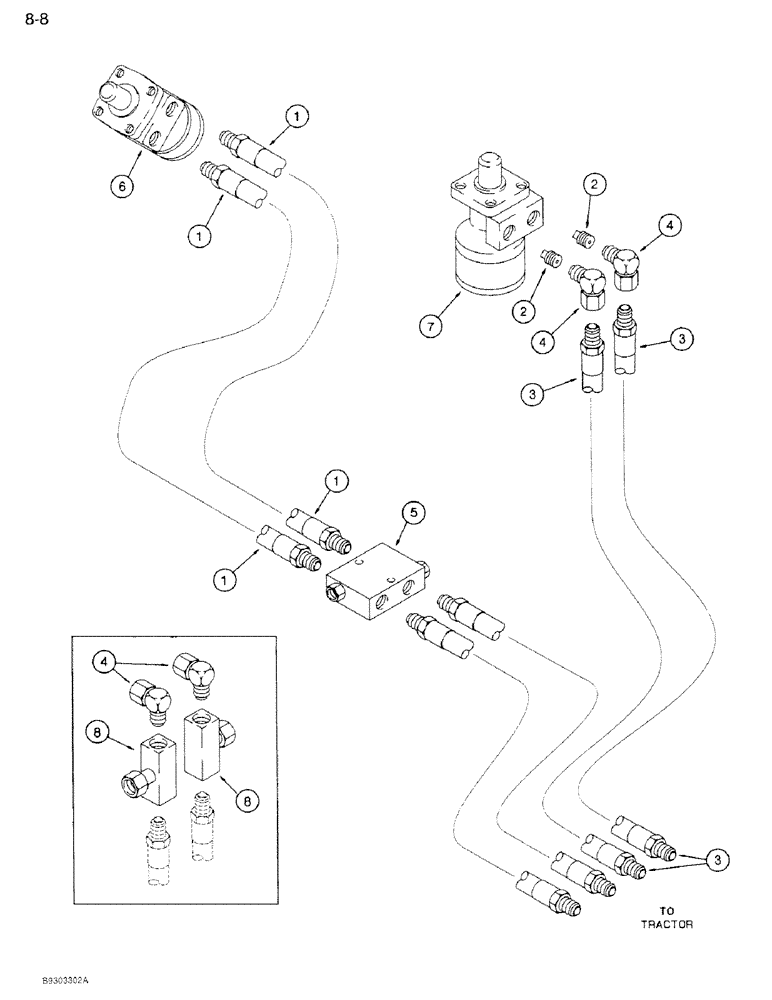

Запчасти Case IH 1250 (8-08) - LIFT AND SWING HYDRAULICS, WITHOUT AUGER FEEDER, 1250 MACHINES, P.I.N. 7001 AND AFTER (07) - HYDRAULICS

1

366088R91

HOSE

ASSEMBLY - hydraulic, 1/2 x 61 inch

2шт.

2

64966C1

FITTING

RESTRICTOR - pipe, 1/4 inch (If equipped)

2шт.

3

64972C1

HYDRAULIC HOSE,0.50" ID x 20.00', SAE 100R1A

HOSE ASSEMBLY - hydraulic, 1/2 inch x 20 foot

4шт.

4

1995574C1

FITTING

ELBOW - 1/2 inch x 90 degree, special

2шт.

5

79882C91

VALVE

- dual relief

1шт.

6

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic, discharge auger raise

1шт.

7

64964C1

MOTOR

ASSEMBLY - hydraulic, discharge auger swing

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix

1шт.

8

1547172C1

VALVE

- flow control, swing control (if equipped)

2шт.

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

- 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

REDUCING BUSHING - 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - 3/8 inch x 1-1/2 inch, swing control (if equipped)

2шт.
