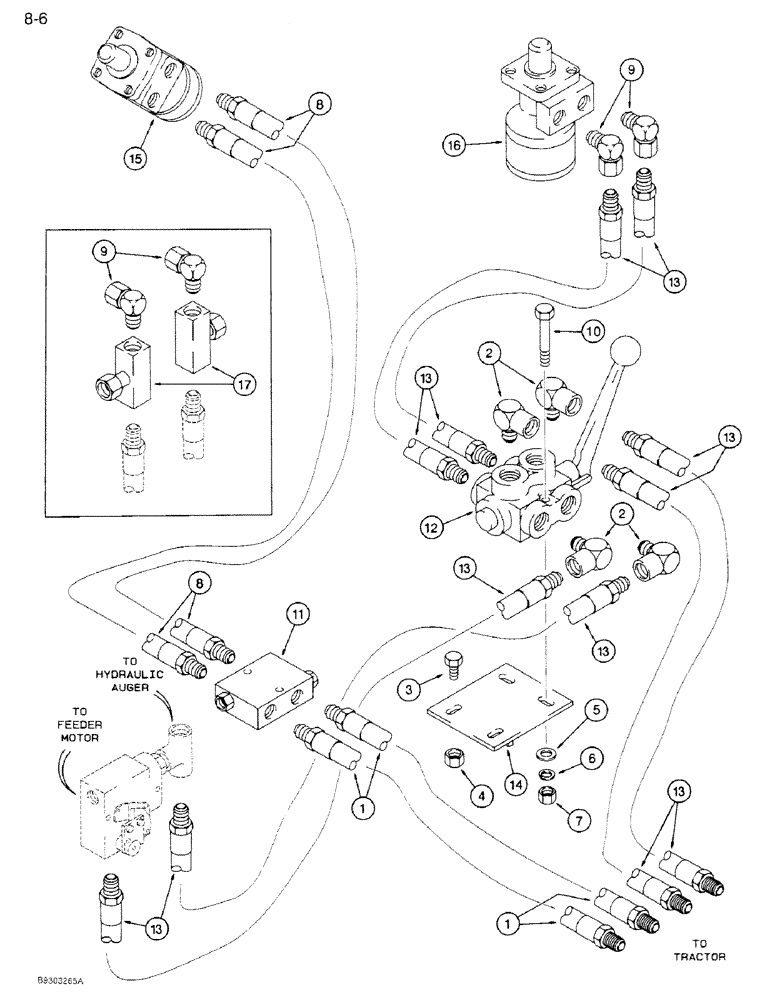

Запчасти Case IH 1250 (8-06) - HYDRAULIC SYSTEM, LIFT AND SWING, WITH AUGER FEEDER, 1250 MACHINES, P.I.N. 7001 AND AFTER (07) - HYDRAULICS

1

366088R91

HOSE

ASSEMBLY - hydraulic, 1/2 x 61 inch

2шт.

2

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 1/2 inch NF x 90 degree street

4шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

64972C1

HYDRAULIC HOSE,0.50" ID x 20.00', SAE 100R1A

HOSE ASSEMBLY - hydraulic, 1/2 inch NF x 20 foot

2шт.

9

1995574C1

FITTING

ELBOW - 1/2 inch x 90 degree street, special with restrictor

2шт.

10

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

11

79882C91

VALVE

- dual relief, 800 psi

1шт.

12

79881C91

VALVE

- double selector

1шт.

1980816C1

KIT

- valve handle

1шт.

13

79810C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 x 120 inch

6шт.

14

1281233C1

PLATE

- selector valve

1шт.

15

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic, discharge auger raise

1шт.

16

64964C1

MOTOR

ASSEMBLY - hydraulic, discharge auger swing

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 7132

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 7133 Through 7516

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 7517 Through 7606

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 7607 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.

17

1547172C1

VALVE

- flow control, swing control (if equipped)

2шт.

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

- 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

REDUCING BUSHING - 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - 3/8 inch x 1-1/2 inch, swing control (if equipped)

2шт.
