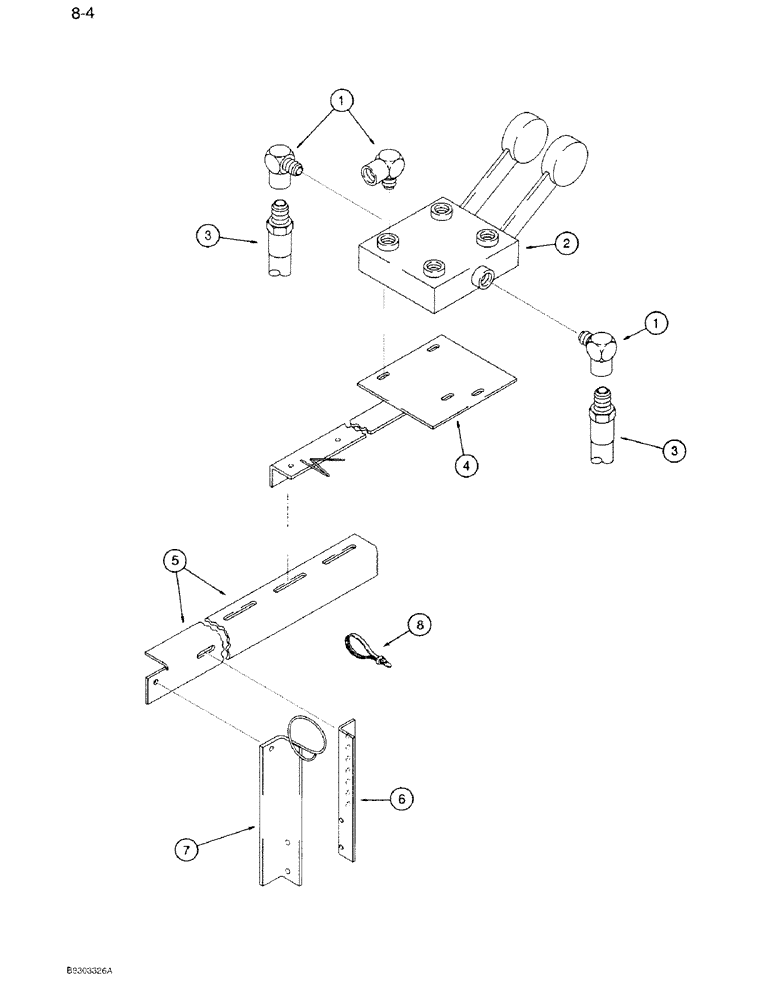

Запчасти Case IH 1250 (8-04) - HYDRAULIC CONTROL VALVE, BACK AUGER, 1250 MACHINES, IF EQUIPPED (07) - HYDRAULICS

1

127961

DEFLECTOR

- 1/2 inch x 90 degree street

6шт.

2

64978C1

VALVE

- hydraulic control

1шт.

3

366088R91

HOSE

ASSEMBLY - hydraulic 1/2 x 61 inch

2шт.

4

145815C1

SUPPORT

ASSEMBLY - control

1шт.

5

145816C1

ANGLE

- support

1шт.

6

145817C1

ANGLE

- front upright

1шт.

7

145818C1

ANGLE

- rear upright

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

7шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

8

58556C1

CABLE TIE

STRAP - retaining, 14 inch

4шт.
