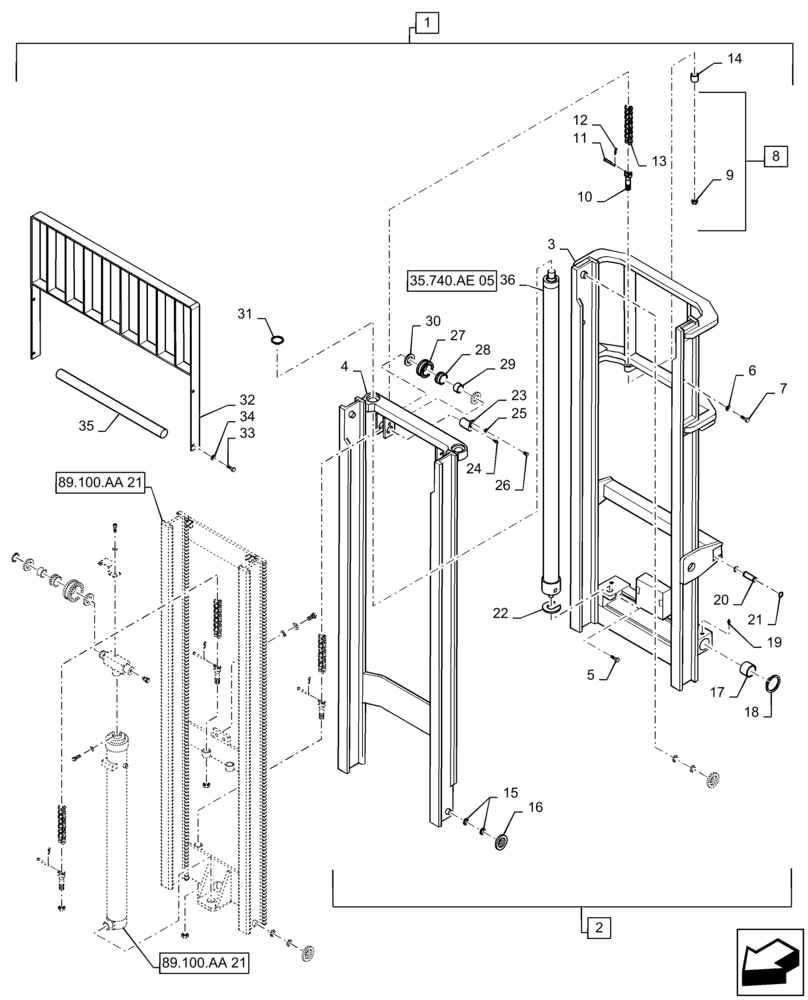

Запчасти Case IH 588H (89.100.AA[20]) - VAR - 423036, 745113 - MAST ASSEMBLY, 8000 LB, 16 FT, FREELIFT, 60 IN, HOOK (89) - TOOLS

1

47631430

16 Ft, Hook, Incl 2 - 36

MAST ASSEMBLY

1шт.

2

47772432

Rail, 3 - 30, 36

SUPPORT

1шт.

3

47778358

Outer

FRAME

1шт.

4

47778366

Intermediate

FRAME

1шт.

5

339777A1

BOLT

Cylinder Retaining

2шт.

6

492-11075

LOCK WASHER,3/4"

2шт.

7

339778A1

BOLT

Rail Stop

2шт.

8

47778402

Incl 9 - 13

CHAIN

2шт.

9

231-24412

LOCK NUT,3/4"-16, GB

4шт.

10

339819A1

ANCHOR

Chain

4шт.

11

339820A1

PIN

Chain Connect

4шт.

12

339784A1

PIN, SPLIT (COTTER)

8шт.

13

47778409

Mounts Through Carriage Chain Anchor

CHAIN

2шт.

14

47781721

Chain Anchor

INSERT

2шт.

15

337606A1

SHIM

0.76 mm (0.03 in)

1шт.

16

337607A1

ROLLER

Load

8шт.

17

339787A1

BUSHING

Mast

2шт.

18

103-21300

SNAP RING,3.00", Int, #300

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

20

339789A1

PIN

Tilt Mast

2шт.

21

103-11125

SNAP RING,#125, Ext

4шт.

22

339786A1

SHIM

0.76 mm (0.03 in)

1шт.

23

363509A1

PIN

Chain

2шт.

24

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

25

492-11031

LOCK WASHER,5/16"

2шт.

26

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

27

339814A1

SHEAVE

Chain

2шт.

28

339816A1

BALL BEARING

Mast

2шт.

29

339817A1

RACE

Inner

2шт.

30

339818A1

THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk

Thrust

4шт.

31

100-11175

SNAP RING,#175, Ext

2шт.

32

47636432

60"

BACKREST

1шт.

33

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

34

492-11062

BEARING WASHER,5/8"

4шт.

35

329457A1

SHAFT

Pivot, Mast

1шт.

36

47778131

Rail

HYDRAULIC CYLINDER

2шт.
