(35.740.AH[01]) - 8000 LB MAST HYDRAULIC SYSTEM

Запчасти Case IH 588H (35.740.AH[01]) - 8000 LB MAST HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

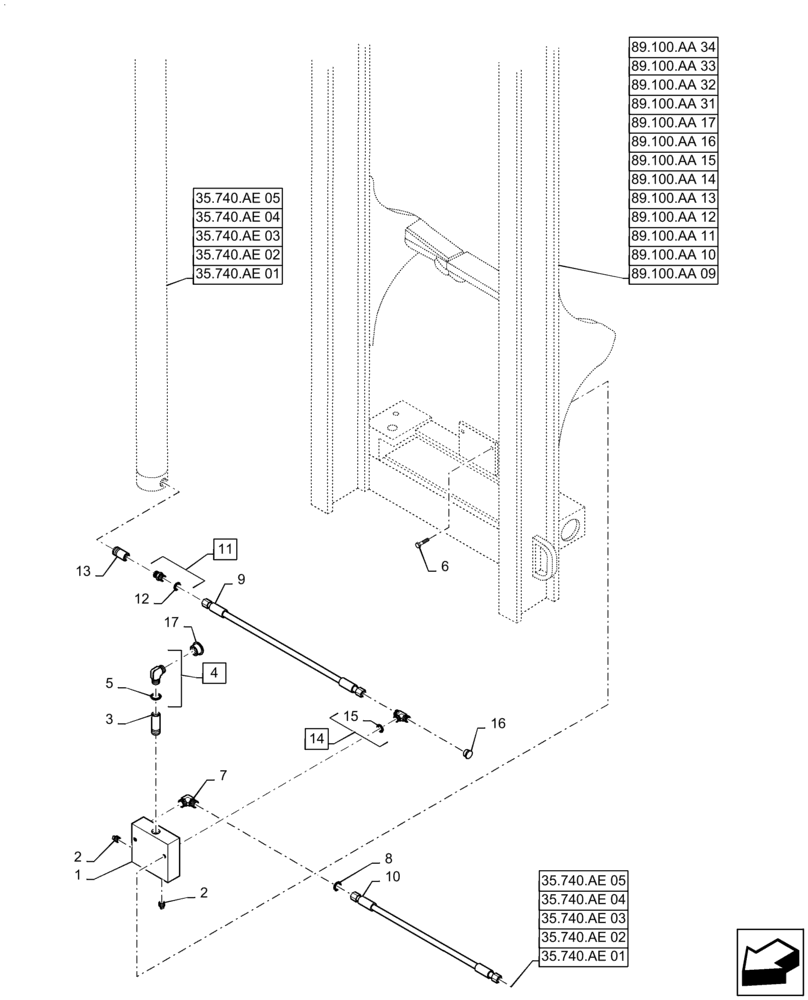

Схема запчастей Case IH 588H - (35.740.AH[01]) - 8000 LB MAST HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
16
89.100.aa 11
89.100.aa 33
14
35.740.ae 02
89.100.aa 16
5
89.100.aa 17
3
35.740.ae 02
89.100.aa 09
9
11
6
35.740.ae 04
10
17
13
89.100.aa 34
12
89.100.aa 14
89.100.aa 32
89.100.aa 10
89.100.aa 13
15
35.740.ae 03
35.740.ae 05
8
2
89.100.aa 15
89.100.aa 31
35.740.ae 04
4
35.740.ae 05
35.740.ae 01
7
1
35.740.ae 03
35.740.ae 01
89.100.aa 12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

337776A1

BLOCK

Manifold

1шт.

2

339834A1

PLUG

Manifold

2шт.

3

352972A1

VALVE

Flow Limiter

1шт.

4

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl 5

1шт.

5

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

Incl in 4

1шт.

6

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

1шт.

7

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

337777A1

HOSE

Right Hand Assembly

1шт.

10

337778A1

HOSE

Left Hand Assembly

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Straight Incl 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 11

1шт.

13

352973A1

LIMITER, TRAVEL

Flow

1шт.

14

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 14

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.
