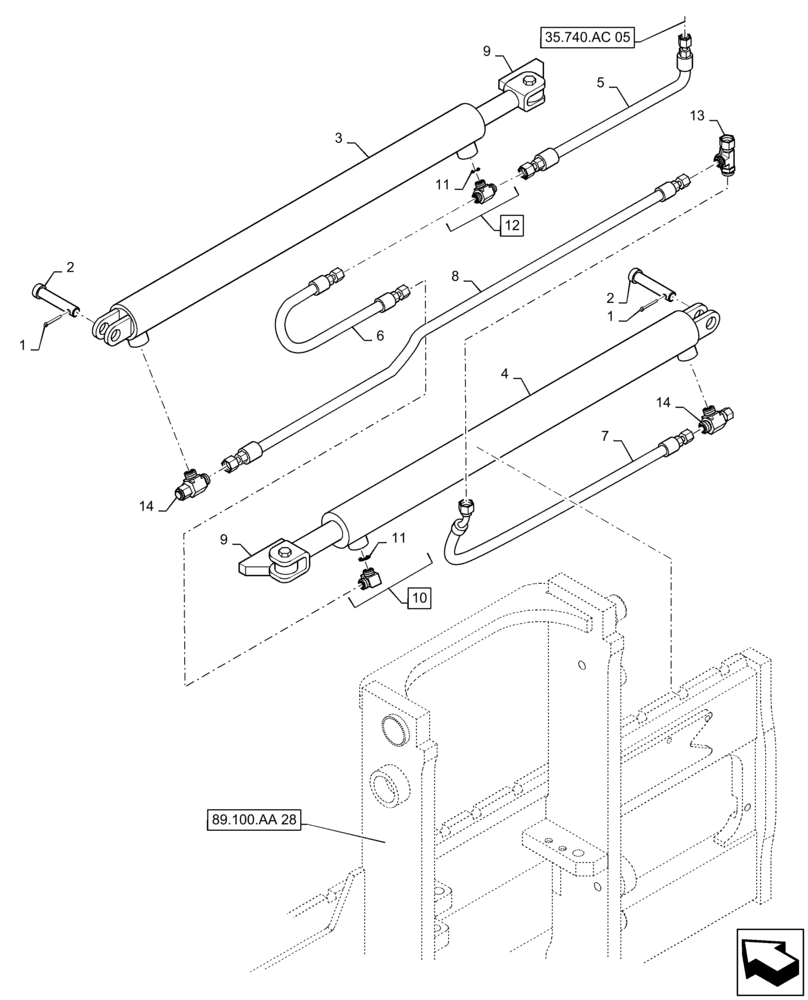

Запчасти Case IH 588H (35.740.AC[06]) - 8000 LB 22 FT 3 STAGE 60" HOOK W/FPS MAST, HYD. LINE, FORK POSITION (35) - HYDRAULIC SYSTEMS

1

80755

COTTER PIN,1/8" OD x 1" L

4шт.

2

47781773

PIN,12.7mm OD x 32mm L

4шт.

3

47781804

HYDRAULIC CYLINDER

1шт.

4

47781815

HYDRAULIC CYLINDER

1шт.

5

47781788

HYDRAULIC HOSE,10mm ID x 406.4mm L

1шт.

6

47781789

HYDRAULIC HOSE,10mm ID x 711.2mm L

1шт.

7

47781790

HYDRAULIC HOSE,10mm ID x 228.6mm L

1шт.

8

47781791

HYDRAULIC HOSE,10mm ID x 1282.7mm L

1шт.

9

47782189

LUG

2шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 11

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

12

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 11

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

47782221

Restrictor

VALVE

2шт.
