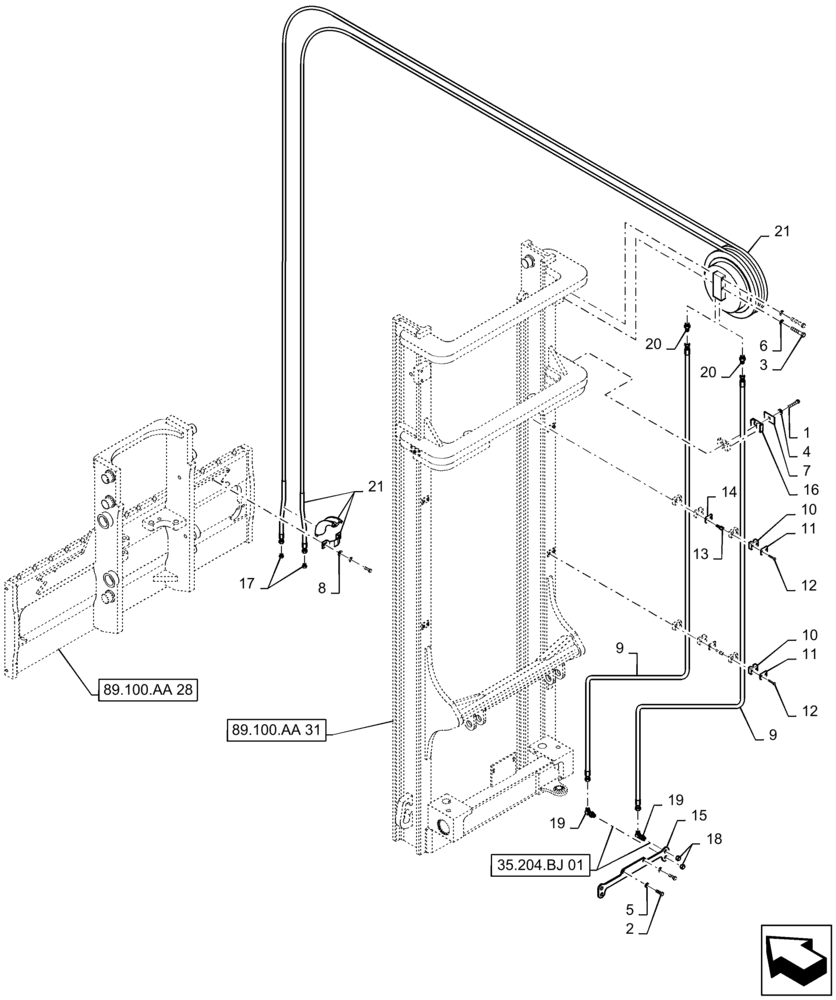

Запчасти Case IH 588H (35.740.AC[05]) - 8000 LB 22 FT 3 STAGE 60" HOOK W/FPS MAST, HYD. LINE, FORK POSITION (35) - HYDRAULIC SYSTEMS

1

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

492-11050

LOCK WASHER,1/2"

2шт.

7

47782208

COVER

1шт.

8

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

2шт.

9

47781786

HYDRAULIC HOSE,10mm ID x 2387.6mm L

2шт.

10

47782196

CLAMP

4шт.

11

47782205

PLATE

2шт.

12

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

4шт.

13

47781772

BOLT,6.35mm OD x 41.4mm L

4шт.

14

47782198

PLATE

2шт.

15

47781818

BRACKET

1шт.

16

47782191

CLAMP

1шт.

17

86513049

PLUG,9/16" - 18 JIC

2шт.

18

574342

CAP,9/16" - 18 JIC

2шт.

19

253449

90 ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

20

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

21

47782227

Hose Reel

KIT

1шт.
