(35.740.AC[01]) - 8000 LB 15 FT 2 STAGE 60" HOOK W/FPS MAST, HYD. LINE, FORK POSITION

Запчасти Case IH 588H (35.740.AC[01]) - 8000 LB 15 FT 2 STAGE 60" HOOK W/FPS MAST, HYD. LINE, FORK POSITION (35) - HYDRAULIC SYSTEMS

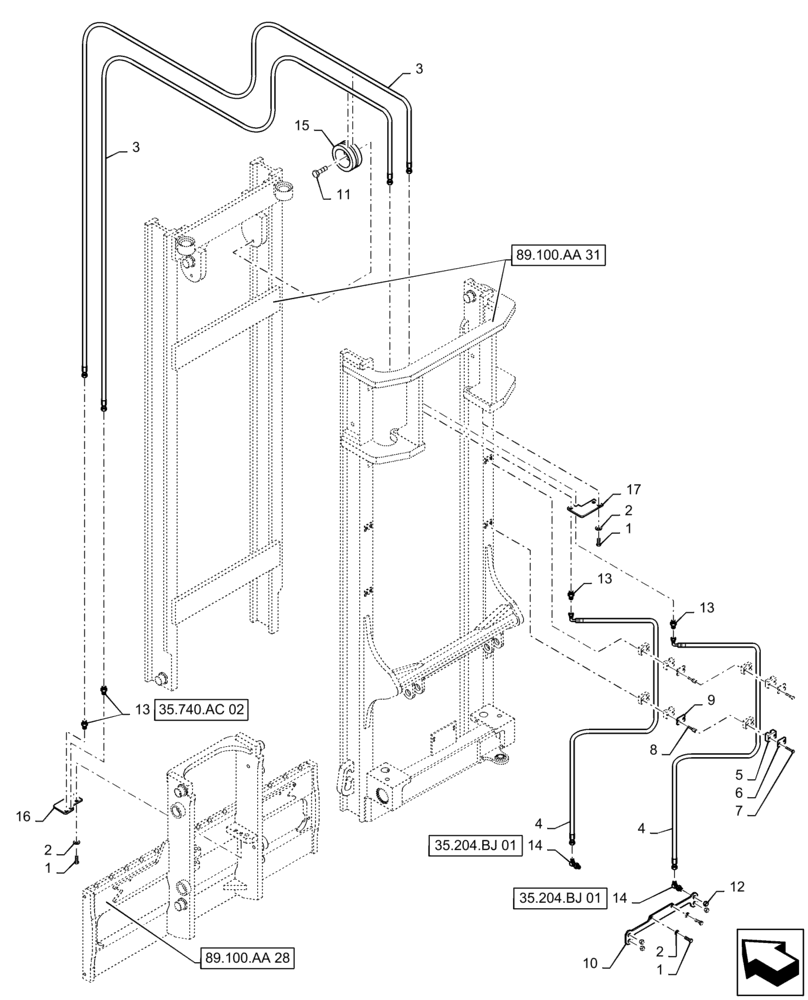

Схема запчастей Case IH 588H - (35.740.AC[01]) - 8000 LB 15 FT 2 STAGE 60" HOOK W/FPS MAST, HYD. LINE, FORK POSITION (35) - HYDRAULIC SYSTEMS
3
35.740.ac 02
14
1
13
2
7
13
6
10
16
9
3
5
35.204.bj 01
89.100.aa 31
13
14
12
17
1
8
89.100.aa 28
35.204.bj 01
1
4
11
15
4
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

47781785

HYDRAULIC HOSE,10mm ID x 2768.6mm L

2шт.

4

47781787

HYDRAULIC HOSE,10mm ID x 2311.4mm L

2шт.

5

47782196

CLAMP

4шт.

6

47782205

PLATE

2шт.

7

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

4шт.

8

47781772

BOLT,6.35mm OD x 41.4mm L

4шт.

9

47782198

PLATE

2шт.

10

47781818

BRACKET

1шт.

11

353025A1

BOLT

1шт.

12

574342

CAP,9/16" - 18 JIC

4шт.

13

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

4шт.

14

253449

90 ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

15

47782226

PULLEY

1шт.

16

47781820

BRACKET

1шт.

17

47781821

BRACKET

1шт.
