Запчасти Case IH 588H (35.355.AH[01]) - 3 SPOOL CONTROL VALVE, FORKLIFT (35) - HYDRAULIC SYSTEMS

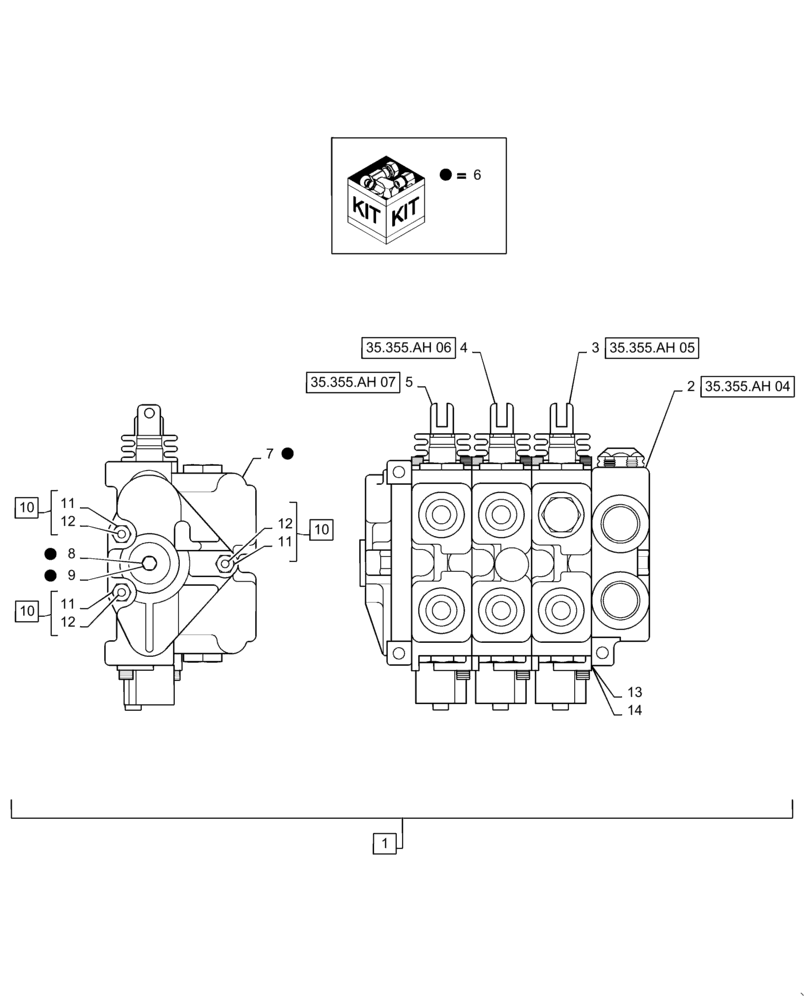

Схема запчастей Case IH 588H - (35.355.AH[01]) - 3 SPOOL CONTROL VALVE, FORKLIFT (35) - HYDRAULIC SYSTEMS
6
14
1
11
35.355.ah 05
35.355.ah 07
10
35.355.ah 04
35.355.ah 06
11
10
12
10
11
9
12
7
4
3
2
6
12
6
6
5
8
13
6

Артикул

Название

Примечание

Количество

1

356883A1

VALVE, CONTROL

Forklift Control, Three Spool, Incl 2 - 14

1шт.

2

360519A1

HYD VALVE SECTION

Inlet

1шт.

3

360520A1

HYD VALVE SECTION

Lift

1шт.

4

358661A1

HYD VALVE SECTION

Tilt

1шт.

5

360521A1

HYD VALVE SECTION

Side Shift

1шт.

6

348719A1

COVER

Kit End Cover, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Housing Incl in 6

1шт.

8

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

348722A1

PACKAGE, REPAIR

Incl 11,12

3шт.

11

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between Sections

12шт.

14

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between Sections

4шт.

Выбрано товаров: 14
