Запчасти Case IH 588H (35.355.AB[01]) - VAR - 423041 - HYDRAULIC LOAD CONTROL (35) - HYDRAULIC SYSTEMS

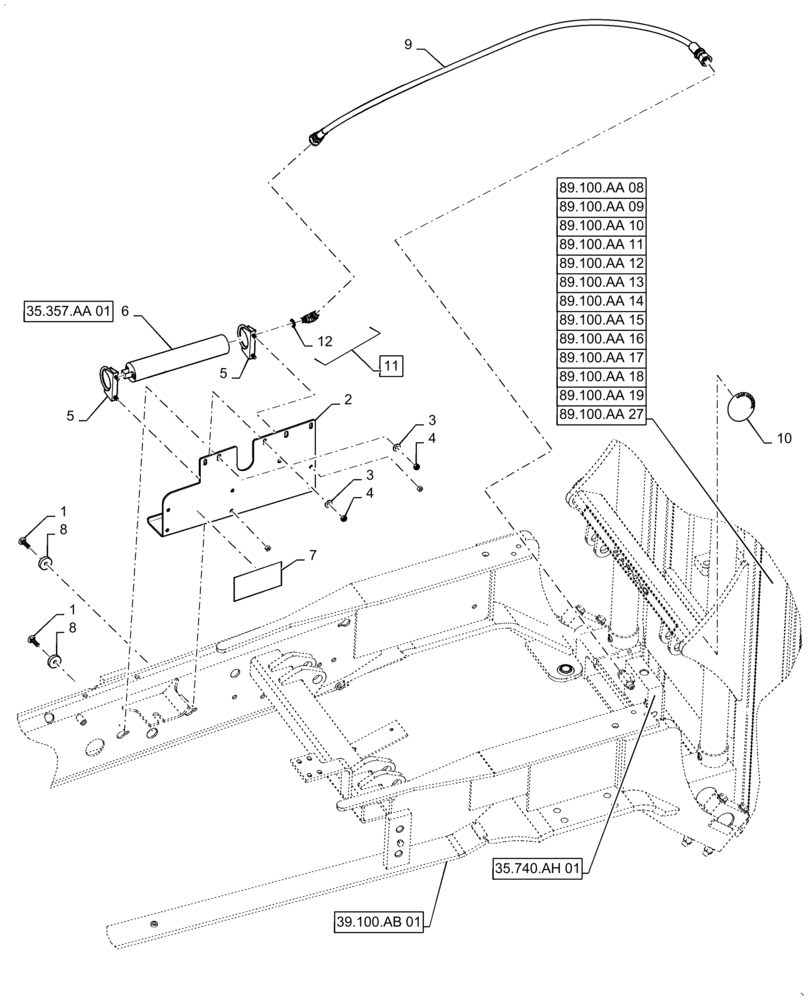

Схема запчастей Case IH 588H - (35.355.AB[01]) - VAR - 423041 - HYDRAULIC LOAD CONTROL (35) - HYDRAULIC SYSTEMS
89.100.aa 10
3
39.100.ab 01
35.357.aa 01
5
6
5
4
10
89.100.aa 08
1
12
11
89.100.aa 11
3
89.100.aa 16
2
89.100.aa 17
9
35.740.ah 01
89.100.aa 27
89.100.aa 12
8
89.100.aa 15
89.100.aa 14
1
89.100.aa 19
4
89.100.aa 18
7
8
89.100.aa 13
89.100.aa 09

Артикул

Название

Примечание

Количество

1

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

2

86993690

MOUNTING PLATE

Accumulator

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

A13240

CLAMP,2-5/8" ID

2шт.

6

448285A1

ACCUMULATOR

1шт.

7

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System Hazard

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

2шт.

9

358187A1

AIR HOSE,12.70 mm ID x 1675.00 mm

1шт.

10

356500A1

DECAL

Load Control

2шт.

11

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

47468728

DIA Kit, Load Control, (Order from Wholegoods Only) Instruction 47465153, Incl 1 - 11

KIT

1шт.

Выбрано товаров: 13
