Запчасти Case IH 588H (35.300.AQ[01]) - HYDRAULIC RESERVOIR BATTERY BOX INSTALLATION (35) - HYDRAULIC SYSTEMS

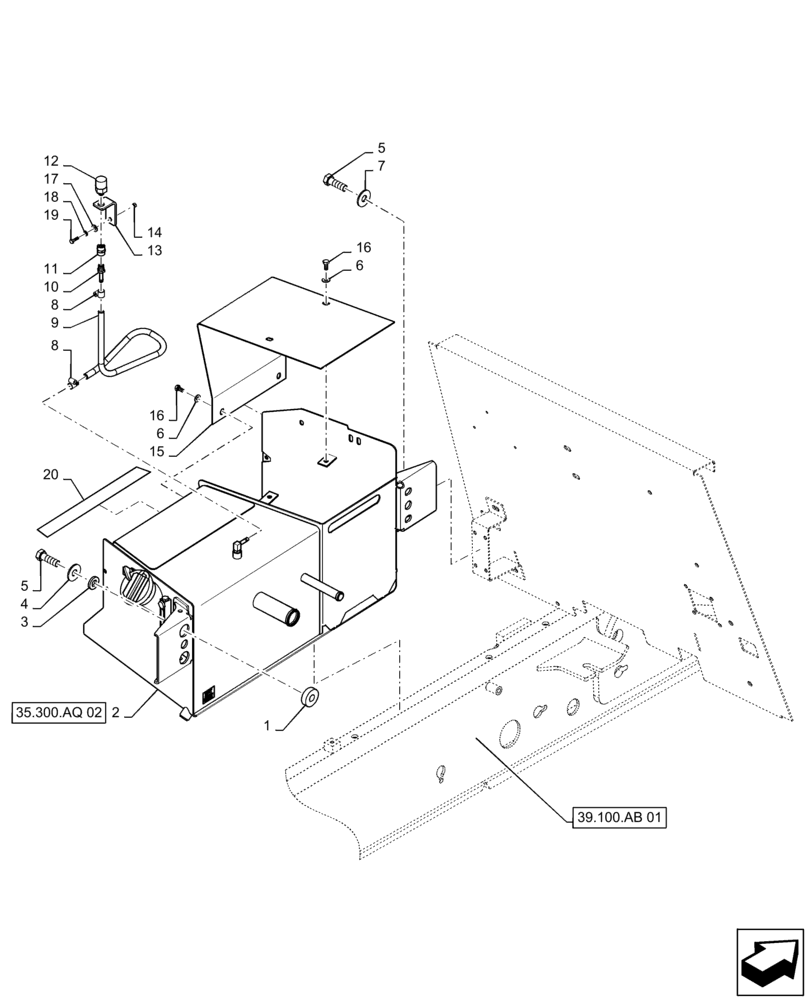

Схема запчастей Case IH 588H - (35.300.AQ[01]) - HYDRAULIC RESERVOIR BATTERY BOX INSTALLATION (35) - HYDRAULIC SYSTEMS
5
39.100.ab 01
16
8
20
15
1
14
3
4
2
6
9
35.300.aq 02
16
13
17
5
18
12
7
11
6
19
8
10

Артикул

Название

Примечание

Количество

1

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Tank

2шт.

2

87693551

RESERVOIR, HYDRAULIC,52.6L

1шт.

3

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Tank

2шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

Heat Treated

2шт.

5

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

4шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

7

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

8

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

9

87363421

HOSE, BULK,9.53mm ID x 912mm L

Vent

1шт.

10

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

11

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

12

361776A1

BREATHER,3/8"-18

Pressure / Vacuum

1шт.

13

122603A1

SUPPORT

Breather Mounting

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

231656A1

COVER

Battery

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

20

87679249

ANTI-SKID STRIP

1шт.

Выбрано товаров: 20
