(35.106.AD[03]) - SHIMADZU PUMP ASSEMBLY, 24 GPM 588H

Запчасти Case IH 588H (35.106.AD[03]) - SHIMADZU PUMP ASSEMBLY, 24 GPM 588H (35) - HYDRAULIC SYSTEMS

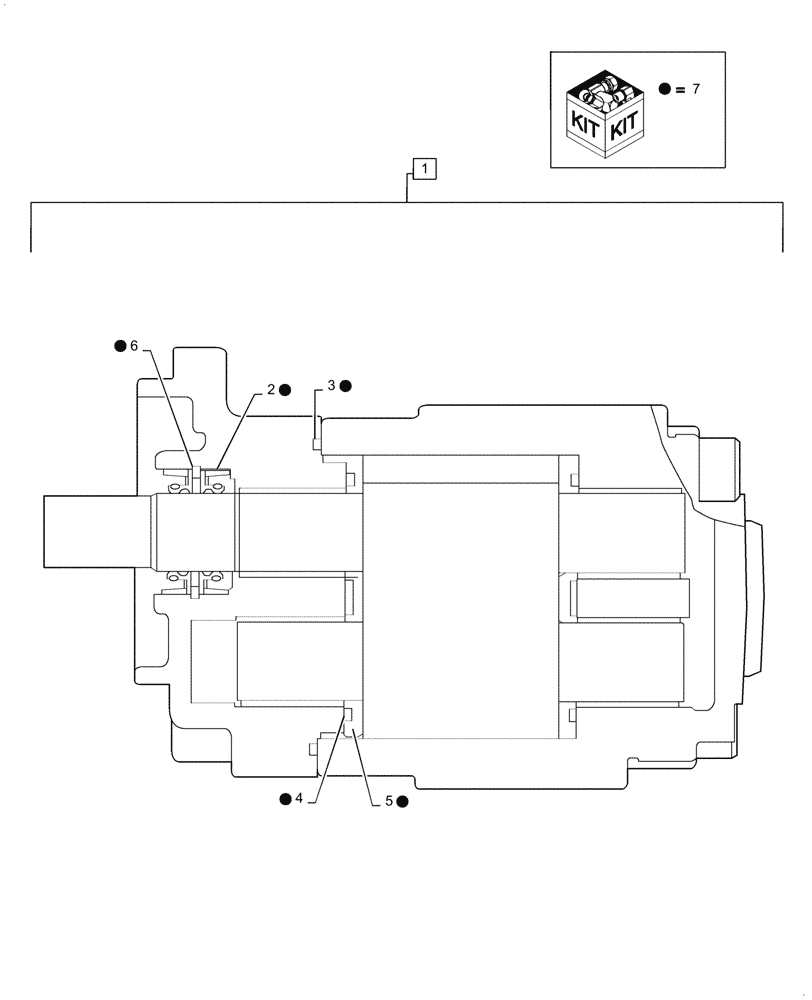

Схема запчастей Case IH 588H - (35.106.AD[03]) - SHIMADZU PUMP ASSEMBLY, 24 GPM 588H (35) - HYDRAULIC SYSTEMS
7
3
7
7
1
7
4
2
5
7
6
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48033301

Forklift Only 24 GPM , Incl 2 - 6, Start Year: 22-OCT-16

HYDRAULIC PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

Lip Seal, Incl in 7

2шт.

3

NSS

NOT SOLD SEPARAT

Gasket, Housing, Incl in 7

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Backup, Incl in 7

2шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Incl in 7

2шт.

6

NSS

NOT SOLD SEPARAT

Ring, Shap, Incl in 7

1шт.

7

47858385

Incl 2 - 6

SERVICE KIT

1шт.
