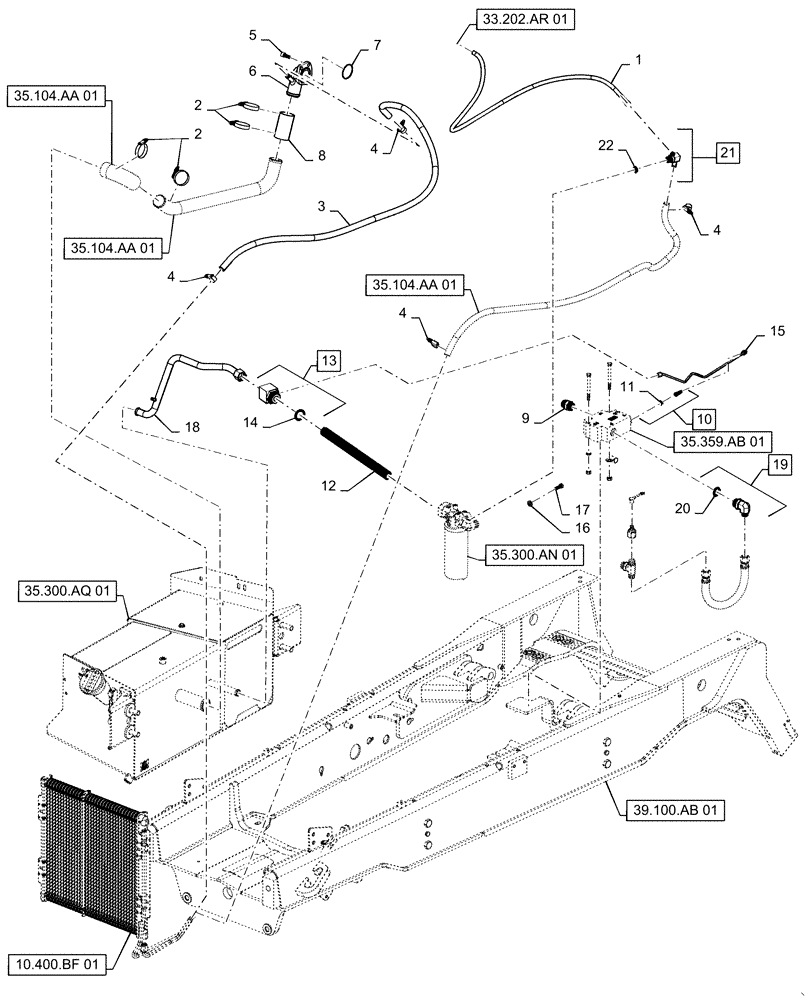

Запчасти Case IH 588H (35.104.AA[04]) - HYDRAULIC LINES FILTER TO PRIORITY VALVE - W/SHIMADZU PUMP (START MARCH 2016) (35) - HYDRAULIC SYSTEMS

1

131676A1

HOSE,7.94mm ID x 1590mm L

Brake Fill

1шт.

2

259044A1

CLAMP

Constant Torque

4шт.

3

87741914

HOSE,15.88mm ID x 1920mm L, SAE 100R16

Cooler To Pump

1шт.

4

328186A1

HOSE CLAMP,400mm L

Constant Torque

1шт.

5

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

6

47863002

Shimadzu Pump Inlet

ADAPTER

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

87306307

HOSE,50.80 mm ID x 105 mm

Suction

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

D132982

PADDLE,26.87mm ID x 400mm L

Hose Guard

1шт.

13

329698A1

TEE

Incl 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

84173093

Priority Sense

TUBE

1шт.

16

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

17

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

18

84484539

Return Filter To Tank

TUBE

1шт.

19

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl 20

1шт.

20

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
