Запчасти Case IH 588H (27.550.02) - STEERING AXLE HOUSING, 2WD (27) - REAR AXLE SYSTEM

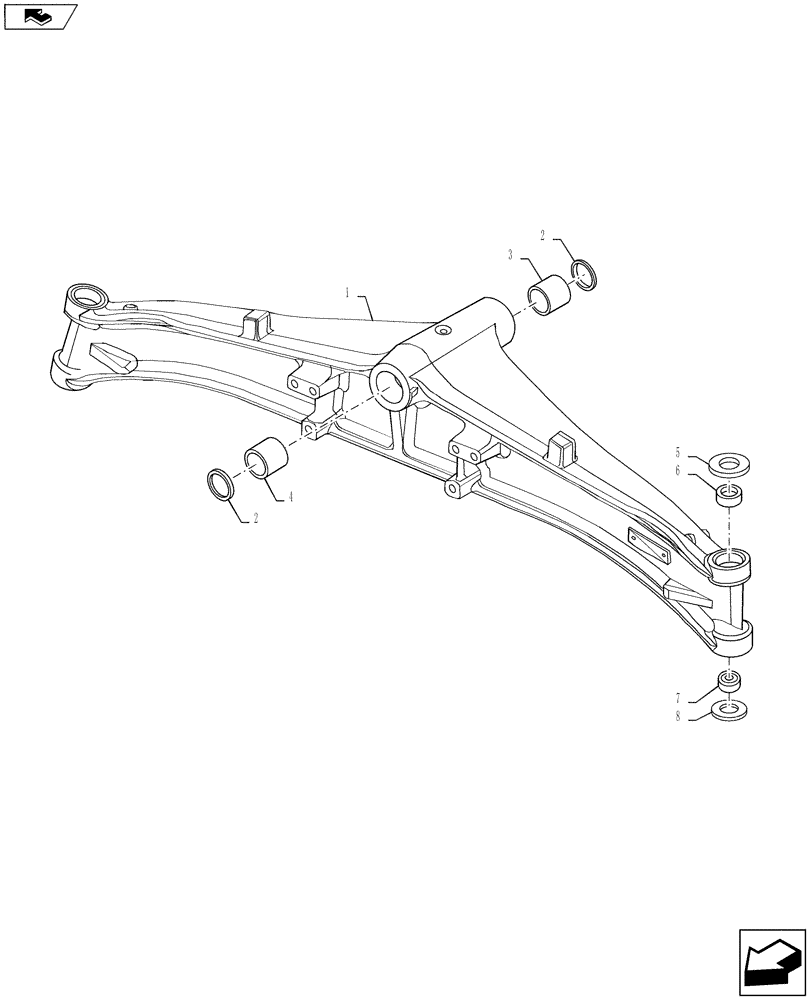

Схема запчастей Case IH 588H - (27.550.02) - STEERING AXLE HOUSING, 2WD (27) - REAR AXLE SYSTEM
6
1
3
5
2
2
8
7
4
home

Артикул

Название

Примечание

Количество

1

429230A1

AXLE HOUSING

2WD

1шт.

2

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

Axle Mounting

2шт.

3

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

Front

1шт.

4

D149725

BUSHING,59.75 OD x 54mm L

Rear

1шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Bellville Upper

2шт.

6

87400286

BUSHING

Upper

2шт.

7

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

Bushing; Two Piece; 28 ID x 50 OD x 16 Lower

2шт.

8

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

Belleville Lower

2шт.

Выбрано товаров: 8
