(27.100.03) - STEERING AXLE, REAR DRIVE SHAFTS, 4WD

Запчасти Case IH 588H (27.100.03) - STEERING AXLE, REAR DRIVE SHAFTS, 4WD (27) - REAR AXLE SYSTEM

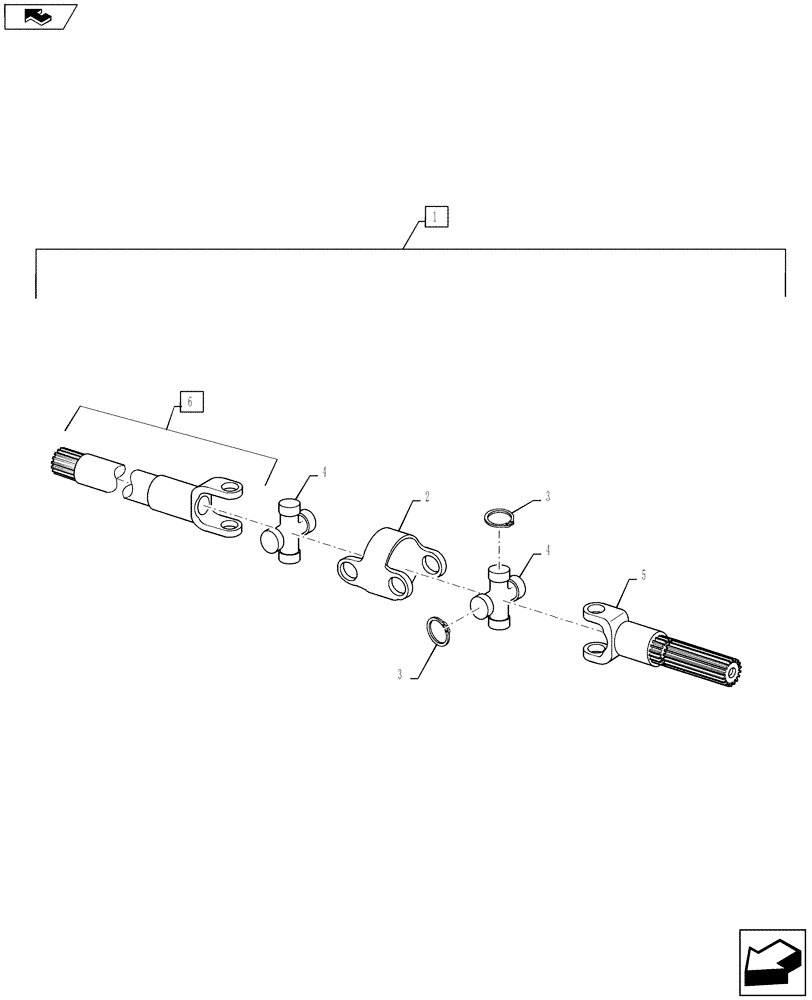

Схема запчастей Case IH 588H - (27.100.03) - STEERING AXLE, REAR DRIVE SHAFTS, 4WD (27) - REAR AXLE SYSTEM
4
3
3
home
4
1
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

144461A1

AXLE-SHAFT, ARTICULA

Incl 2 - 6

2шт.

2

390029A1

BODY

Central

2шт.

3

N14410

RING

Retaining

16шт.

4

144465A1

U-JOINT SPIDER

Rear Drive Shaft

4шт.

5

144463A1

SHAFT

Short, Wheel Side

2шт.

6

144462A1

SHAFT

Long, Differential Side

2шт.
