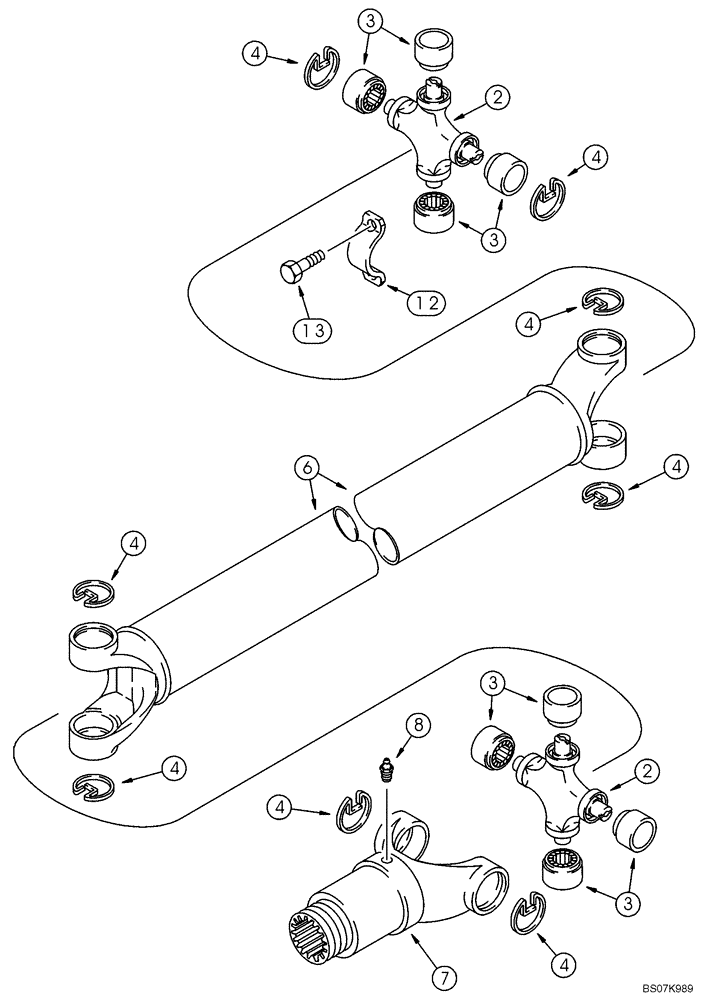

Запчасти Case IH 588H (25.108.01) - DRIVE AXLE, DRIVE SHAFT (25) - FRONT AXLE SYSTEM

87613924

DRIVE SHAFT

Incl. 2 - 8

1шт.

393231A1

SPIDER

Kit, Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Journal

4шт.

4

NSS

NOT SOLD SEPARAT

Ring

4шт.

6

NSS

NOT SOLD SEPARAT

Shaft; Order Complete Drive Shaft 87613924

1шт.

7

87716823

YOKE

Splined

1шт.

7

87716824

CAP

Retaining (Not Shown)

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

87538515

KIT

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
