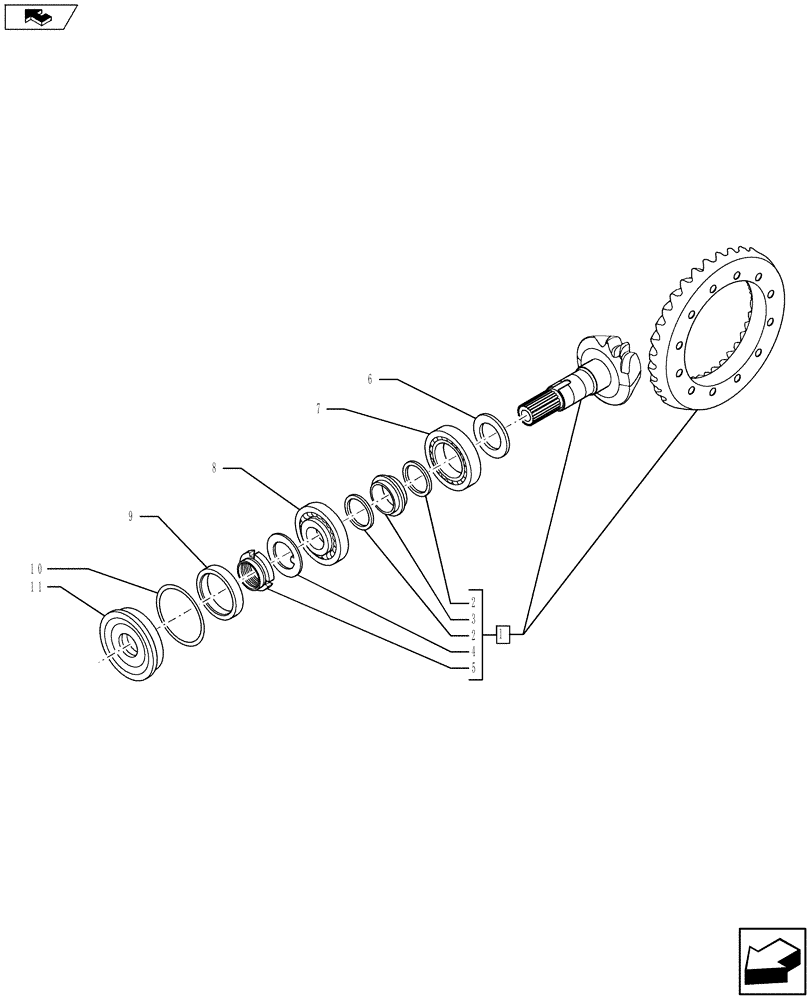

Запчасти Case IH 588H (25.102.04) - FRONT DRIVE RING & PINION (25) - FRONT AXLE SYSTEM

1

87708393

GEAR SET

Incl 2 - 5

1шт.

2

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

Bearing

2шт.

3

175957A1

SPACER

Collapsible

1шт.

4

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

62mm

1шт.

5

K261014

RING NUT,M40 x 1.5

Ring

1шт.

6

190506A1

SHIM,2.5mm Thk

1шт.

6

190508A1

SHIM,2.6mm Thk

1шт.

6

190509A1

SHIM,2.7mm Thk

1шт.

6

190510A1

SHIM,2.8mm Thk

1шт.

6

190511A1

SHIM,2.9mm Thk

1шт.

6

190512A1

SHIM,3.0mm Thk

1шт.

6

190513A1

SHIM,3.1mm Thk

1шт.

6

190514A1

SHIM,3.2mm Thk

1шт.

6

190515A1

SHIM,3.3mm Thk

1шт.

6

190516A1

SHIM,3.4mm Thk

1шт.

7

P1139855X

BALL BEARING

Tapered

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

Tapered

1шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

1шт.

10

445720A1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

Transmission

1шт.

11

128570A1

FLANGE

Retainer

1шт.
