Запчасти Case IH 588H (21.140.01) - TRANSMISSION, INPUT/PTO SHAFT ASSEMBLY, 2WD AND 4WD (21) - TRANSMISSION

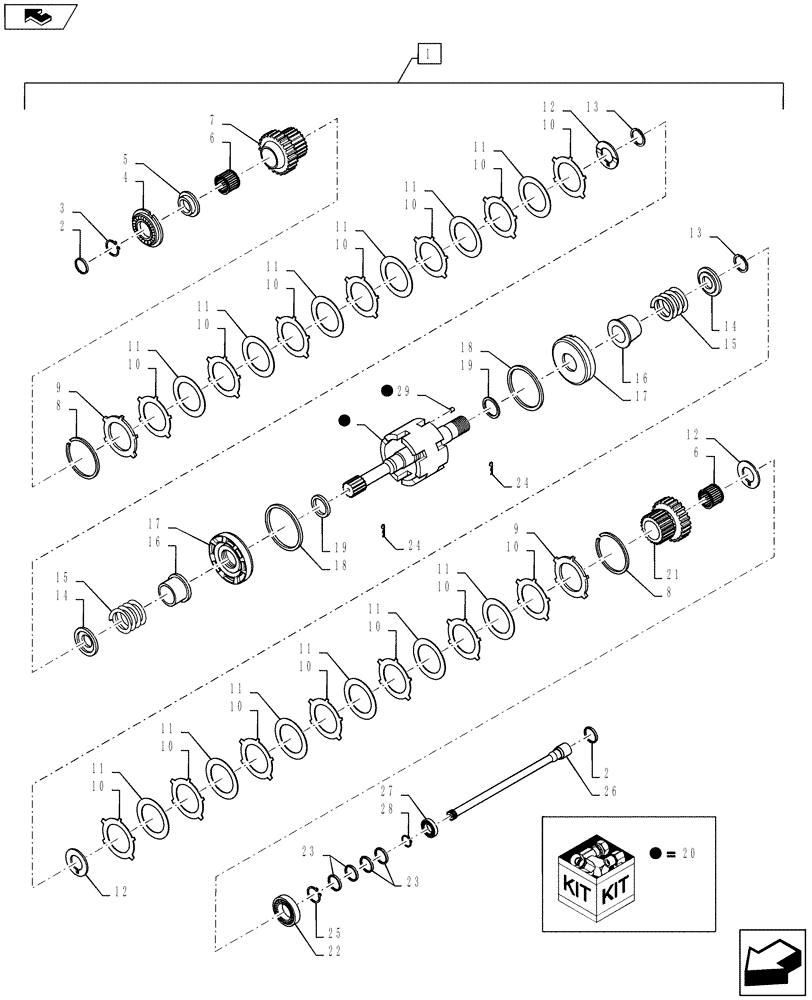

Схема запчастей Case IH 588H - (21.140.01) - TRANSMISSION, INPUT/PTO SHAFT ASSEMBLY, 2WD AND 4WD (21) - TRANSMISSION
15
10
29
2
20
11
10
10
21
11
23
5
3
11
10
14
24
4
10
28
11
home
11
10
10
11
12
20
24
27
19
25
18
10
8
11
17
18
10
11
12
10
7
14
15
13
23
10
11
10
22
6
8
20
17
2
10
12
11
19
26
11
11
6
20
16
10
13
9
9
1
16

Артикул

Название

Примечание

Количество

1

84468418

Incl 2 - 29

CLUTCH INPUT SHAFT

1шт.

2

358645A1

SEALING RING

Ring

2шт.

3

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

To Axle

1шт.

4

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

5

358635A1

SPACER

Input Shaft

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

Roller

2шт.

7

366318A1

GEAR

Reverse

1шт.

8

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

146.6mm Outer Diameter

2шт.

9

310519A1

PLATE

Clutch Backing

2шт.

10

181159A1

DISC

Intermediary

14шт.

11

181158A1

CLUTCH DISC

Primary

12шт.

12

358640A1

WASHER

Input Shaft

3шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

47.8mm Diameter

2шт.

14

181161A1

PLATE, THRUST

Cover

2шт.

15

358637A1

SPRING

Piston Return

2шт.

16

358641A1

TRANSMISSION SLEEVE

Lube

2шт.

17

358644A1

PISTON

Clutch

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

Piston Out

2шт.

19

358642A1

SEALING RING

Piston In

2шт.

20

87525849

REPAIR KIT

Input Shaft Incl 29

1шт.

21

358638A1

PINION,39T

Gear Forward

1шт.

22

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

23

87429984

RING

Seal

4шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

3X8

2шт.

25

800-1150

SNAP RING,M50, Ext

1шт.

26

87705460

PTO SHAFT

Power Shift

1шт.

27

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

28

800-1130

SNAP RING,M30, Ext

1шт.

29

139312A1

PLUG,Expansion, 6mm OD

Rivet

4шт.

Выбрано товаров: 29
