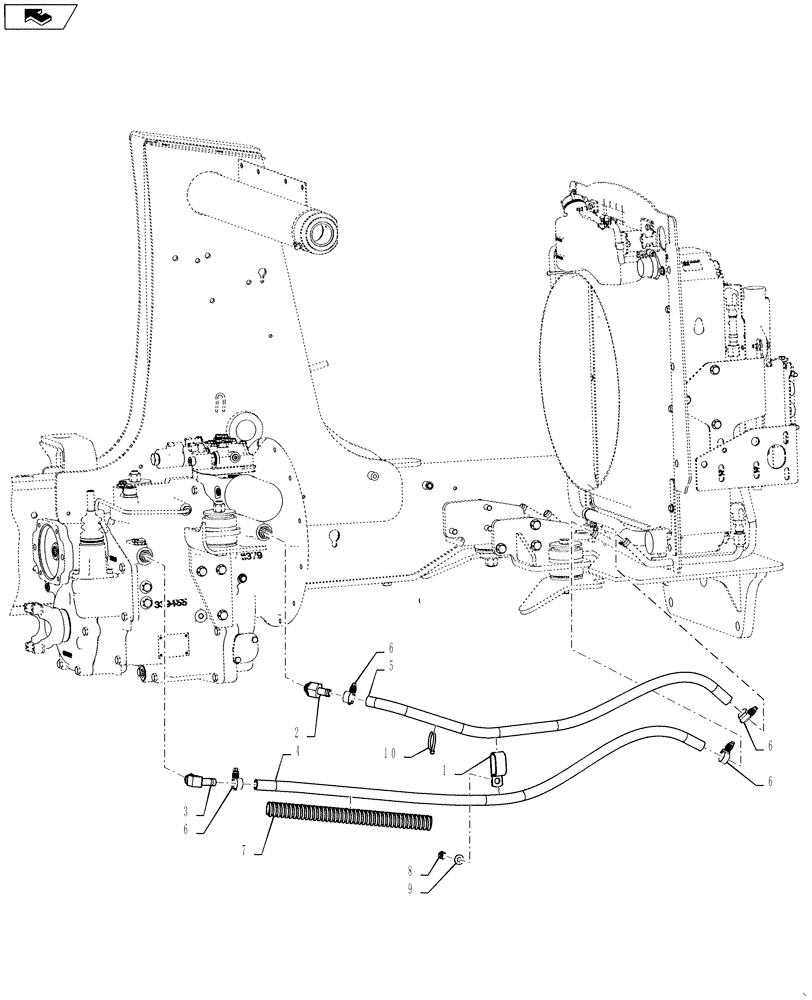

Запчасти Case IH 588H (21.104.01[01]) - TRANSMISSION, OIL COOLER LINE INSTALLATION (21) - TRANSMISSION

1

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double

1шт.

2

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

3

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl O-Ring

1шт.

4

87422598

HOSE,15.88mm ID x 1225mm L, SAE 100R6

Transmission Cooler

1шт.

5

87422597

HOSE,15.88mm ID x 975mm L, SAE 100R6

Transmission Cooler

1шт.

6

328186A1

HOSE CLAMP,400mm L

Constant Torque

4шт.

7

D132982

PADDLE,26.87mm ID x 400mm L

Wiring and Hose Guarding

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black

1шт.
