Запчасти Case IH 588H (10.218.01) - FUEL LINE INSTALLATION (10) - ENGINE

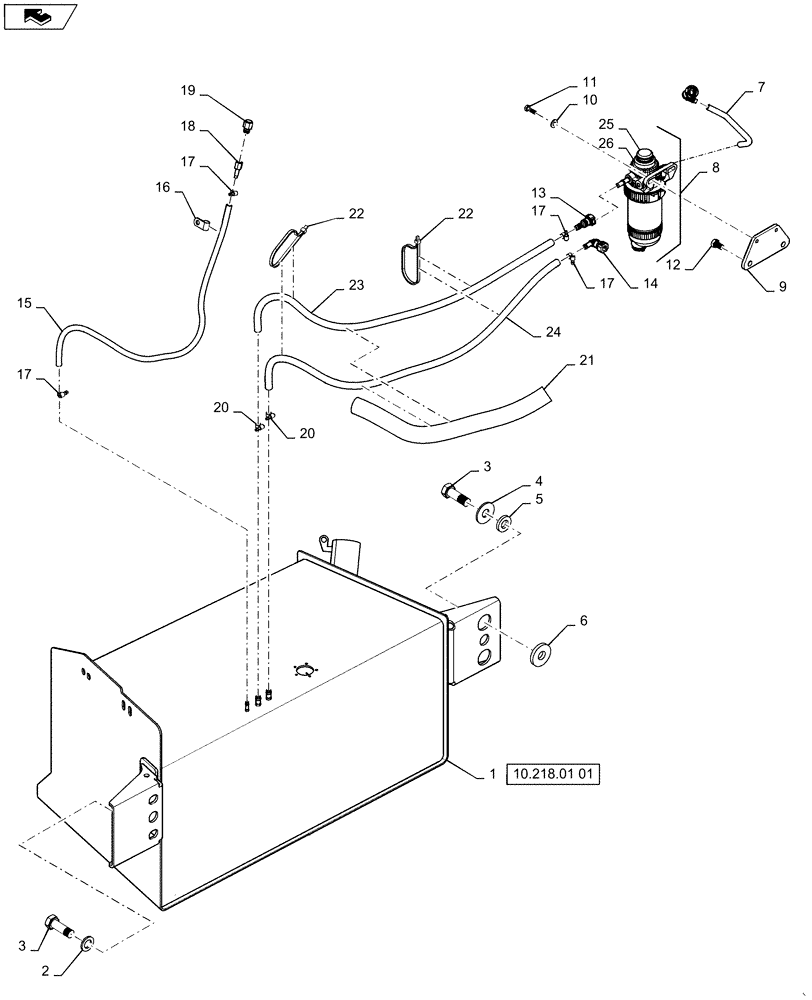

Схема запчастей Case IH 588H - (10.218.01) - FUEL LINE INSTALLATION (10) - ENGINE
17
16
2
home
3
10
11
6
24
14
15
23
10.218.01 01
9
3
19
20
8
17
13
20
22
12
4
21
26
17
5
25
1
18
7
17
22

Артикул

Название

Примечание

Количество

1

87429310

FUEL TANK

See Fig. 10.218.01 (01)

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

Heat Treated

2шт.

5

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Tank

2шт.

6

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Tank

2шт.

7

84391629

Fuel Line Suction, Filter to Engine

RIGID TUBE

1шт.

8

84392298

FILTER

Fuel

1шт.

9

84391569

Fuel Filter Mounting

BRACKET

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

13

84387763

FITTING

Raymond Straight

1шт.

14

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

Fuel

1шт.

15

87656146

FUEL HOSE,6.35 mm ID x 880.00 mm

Fuel Vent

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

18

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

1шт.

19

130047A1

BREATHER ASSY.

Vent Plug

1шт.

20

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

21

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

Black

2шт.

23

84420127

Fuel Inlet

FUEL HOSE

1шт.

24

87658696

FUEL HOSE,9.53 mm ID x 1315.00 mm, SAE 30R7

Fuel Inlet

1шт.

25

87801005

KIT

Water Bowl

1шт.

26

87612475

SENSOR

Sensor

1шт.

Выбрано товаров: 26
