Запчасти Case IH 588H (21.182.AB[01]) - DIFFERENTIAL LOCK HOSE ASSY, 4WD (21) - TRANSMISSION

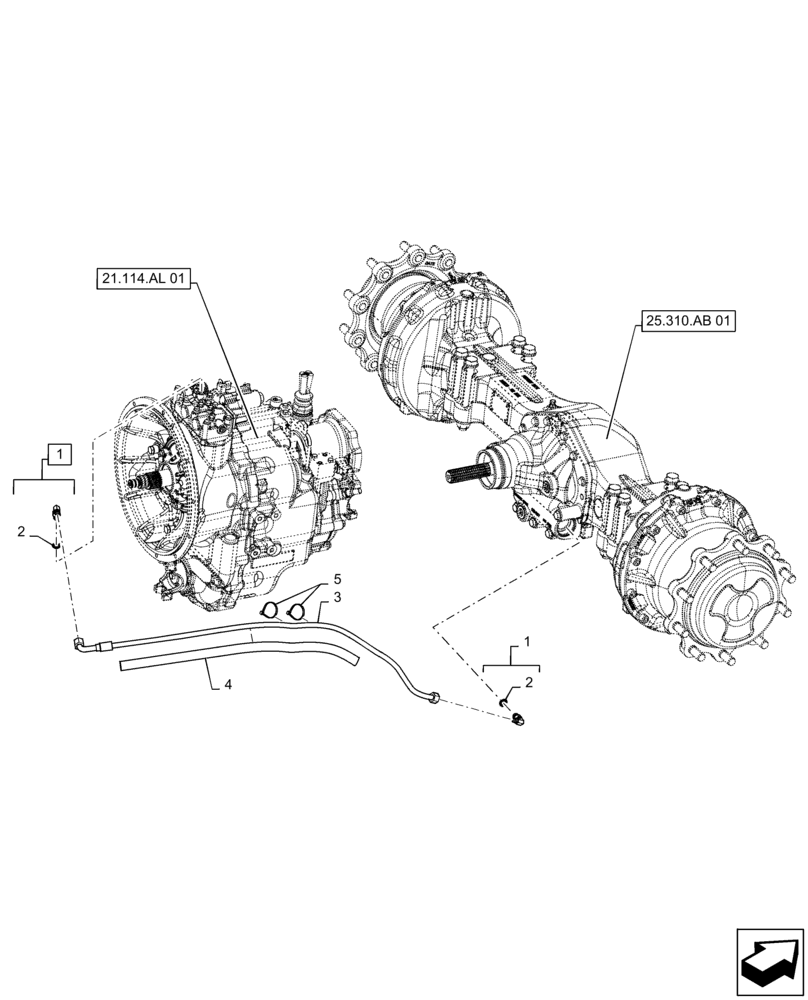

Схема запчастей Case IH 588H - (21.182.AB[01]) - DIFFERENTIAL LOCK HOSE ASSY, 4WD (21) - TRANSMISSION
1
25.310.ab 01
21.114.al 01
4
1
2
2
3
5

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl 2

2шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 1

2шт.

3

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

Differential Lock

1шт.

4

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Guard

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

Выбрано товаров: 5
