Запчасти Case IH 588H (21.140.AE[04]) - TRANSMISSION OUTPUT SHAFT, 4WD (21) - TRANSMISSION

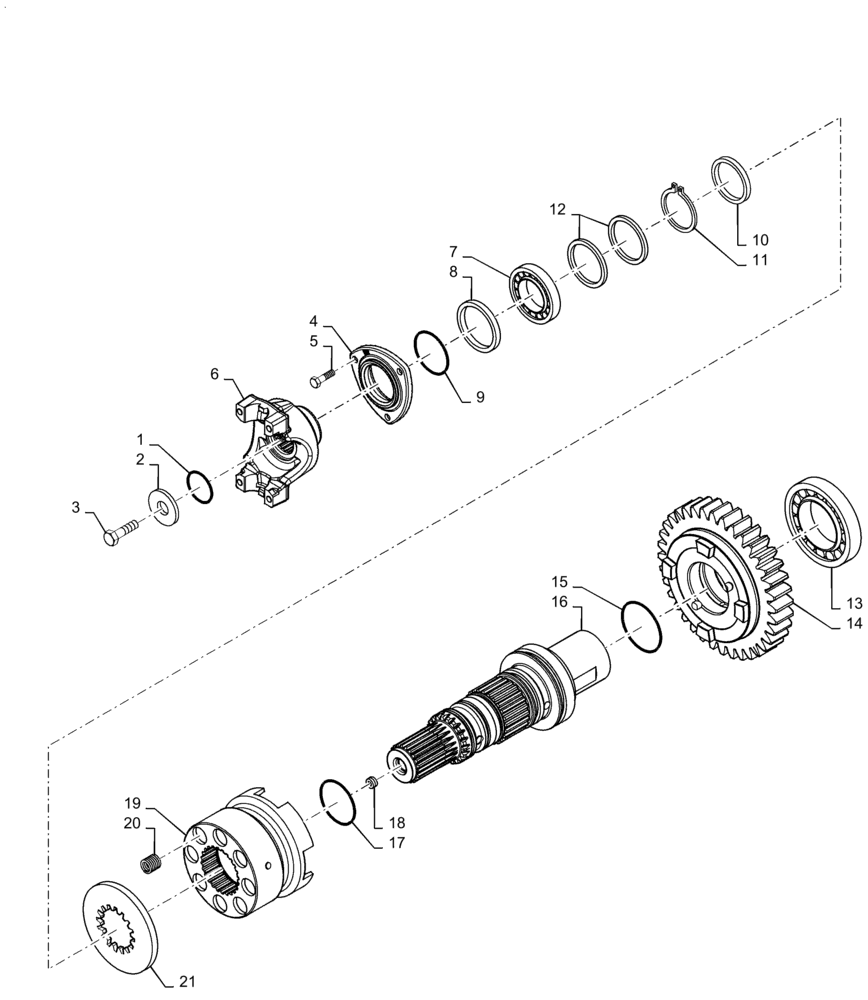

Схема запчастей Case IH 588H - (21.140.AE[04]) - TRANSMISSION OUTPUT SHAFT, 4WD (21) - TRANSMISSION
5
7
20
14
8
11
15
4
9
6
13
21
1
16
10
19
2
17
12
18
3

Артикул

Название

Примечание

Количество

1

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

2

P2745466

WASHER

Yoke

1шт.

3

P3533055

SCREW,M12 x 1.25 x 25mm

M12

1шт.

4

181198A1

COVER

Dust

1шт.

5

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

6

87704971

YOKE

Front

1шт.

7

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

8

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

Ring

1шт.

9

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1шт.

10

P2745478Q

WASHER

Plate

1шт.

11

800-5145

SNAP RING,M45, Ext

1шт.

12

358645A1

SEALING RING

Ring

2шт.

13

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

14

366234A1

PINION,36T

Gear

1шт.

15

366235A1

O-RING

Shaft

1шт.

16

366230A1

SHAFT

Output

1шт.

17

366236A1

O-RING,3.53mm Thk x 42.85mm ID

1шт.

18

D142898

PLUG,M10 x 1

M10

1шт.

19

366232A1

TRANSMISSION SLEEVE

Housing

1шт.

20

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

Transmission Sleeve

8шт.

21

366231A1

WASHER

Retaining

1шт.

Выбрано товаров: 21
