Запчасти Case IH 588H (90.108.AB[04]) - DECALS COMMON ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

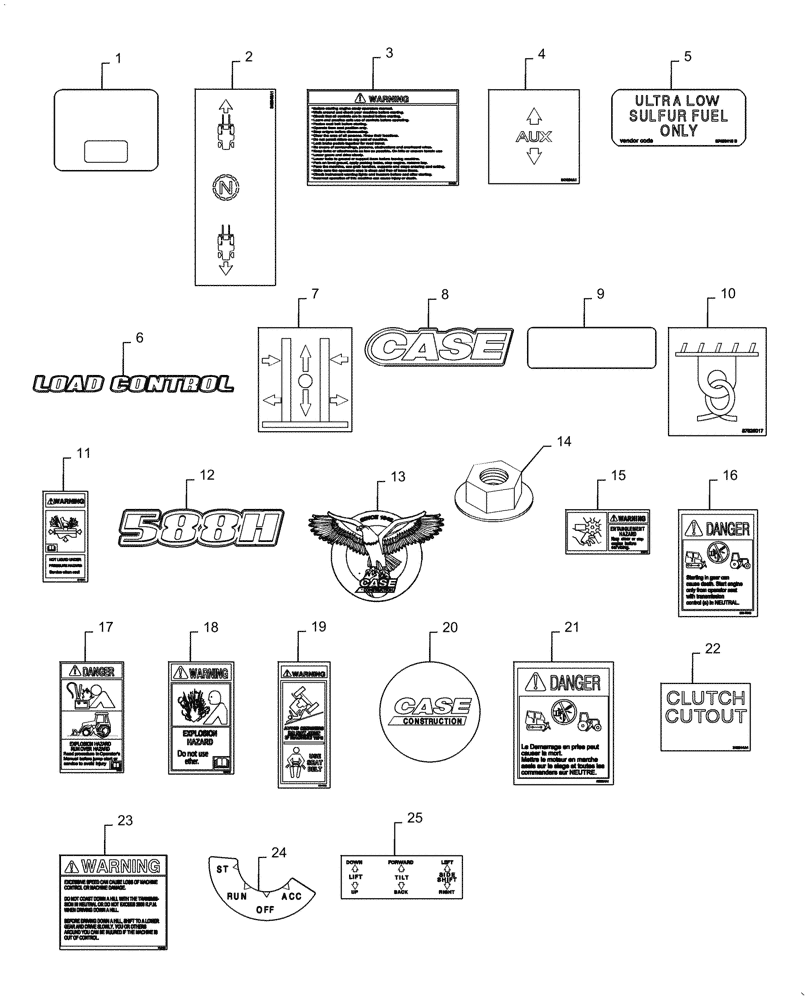

Схема запчастей Case IH 588H - (90.108.AB[04]) - DECALS COMMON ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
24
13
15
20
17
18
16
9
1
4
21
23
11
19
7
3
10
6
5
25
2
12
14
22

Артикул

Название

Примечание

Количество

1

192450A1

DECAL

Poly Film

1шт.

2

348343A1

DECAL

F-N-R

1шт.

3

347909A1

DECAL

Warning Before Start

1шт.

4

347894A1

DECAL

Auxiliary Control

1шт.

5

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfer Fuel

1шт.

6

47976297

Load Control

DECAL

2шт.

7

87432940S

DECAL

Fork Positioner

1шт.

8

48002470

Case Logo

DECAL,819mm x 187mm H

2шт.

9

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector

2шт.

10

84305368

Tie Down

DECAL

4шт.

11

384258A1

DANGER DECAL

Radiator Cap Warning

2шт.

12

47930331

588H Model Only

DECAL

2шт.

13

47948165

Case Eagle Grill Medallion

EMBLEM

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

15

384267A1

WARNING DECAL

Fans/Belts

2шт.

16

321-7040

DANGER DECAL

Starting

1шт.

17

384269A1

DANGER DECAL

Correct Jump Start Method

2шт.

18

47728994

DECAL

Explosion Hazard

1шт.

19

321-7030

WARNING DECAL

Do Not Jump

1шт.

20

84498473

50 mm Steering Wheel

DECAL

1шт.

21

359934A1

DECAL

Caution Starting In Gear

1шт.

22

348344A1

DECAL

Clutch Cutout

1шт.

23

D150900

DECAL

Down Hill

1шт.

24

321-4921

DECAL

Ignition

1шт.

25

321-3902

DECAL

Fork Control

1шт.

Выбрано товаров: 25
