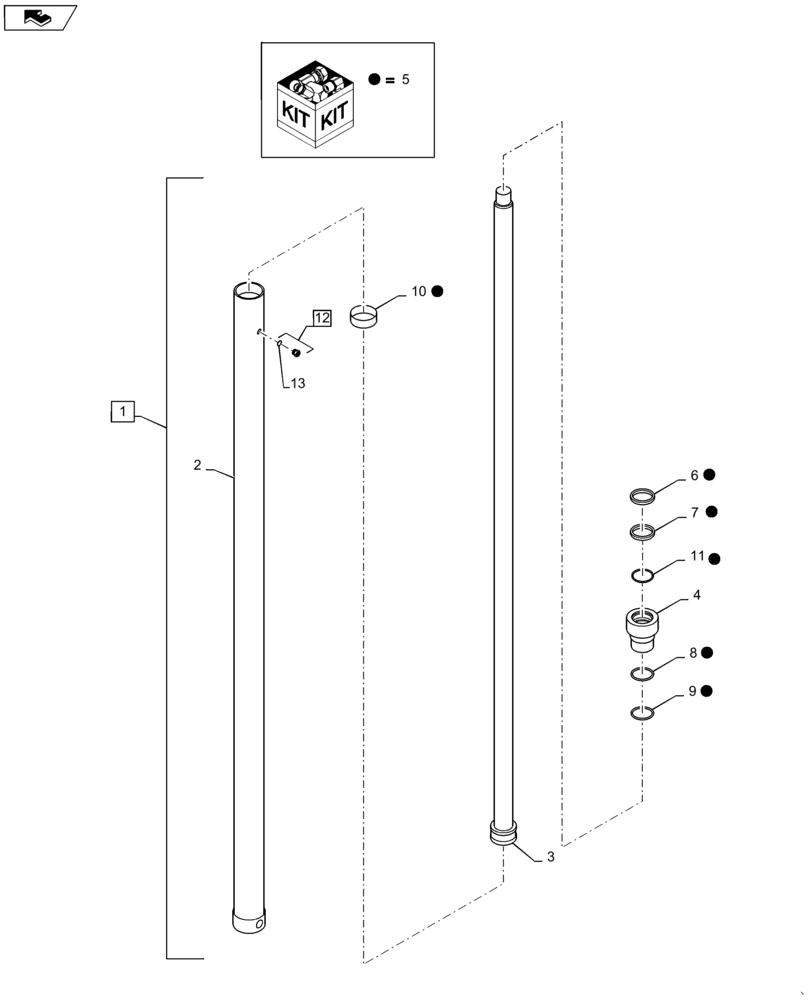

Запчасти Case IH 588H (35.740.AE[06]) - 8000 LB, 16 FT, FREELIFT CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

47778436

Complete, Incl 2 - 13

HYDRAULIC CYLINDER

1шт.

2

47778531

Incl in 1

TUBE

1шт.

3

47778529

Incl in 1

ROD

1шт.

4

47778570

NUT

1шт.

5

84511714

Incl 6 - 11

SEAL KIT

1шт.

6

47778628

Incl in 5

ROD WIPER

1шт.

7

47778626

Incl in 5

CUP

1шт.

8

47778621

Incl in 5

RING

1шт.

9

47778620

O-RING

1шт.

10

47778629

Incl in 5

RING

1шт.

11

47778630

SEAL

1шт.

12

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 12

1шт.
