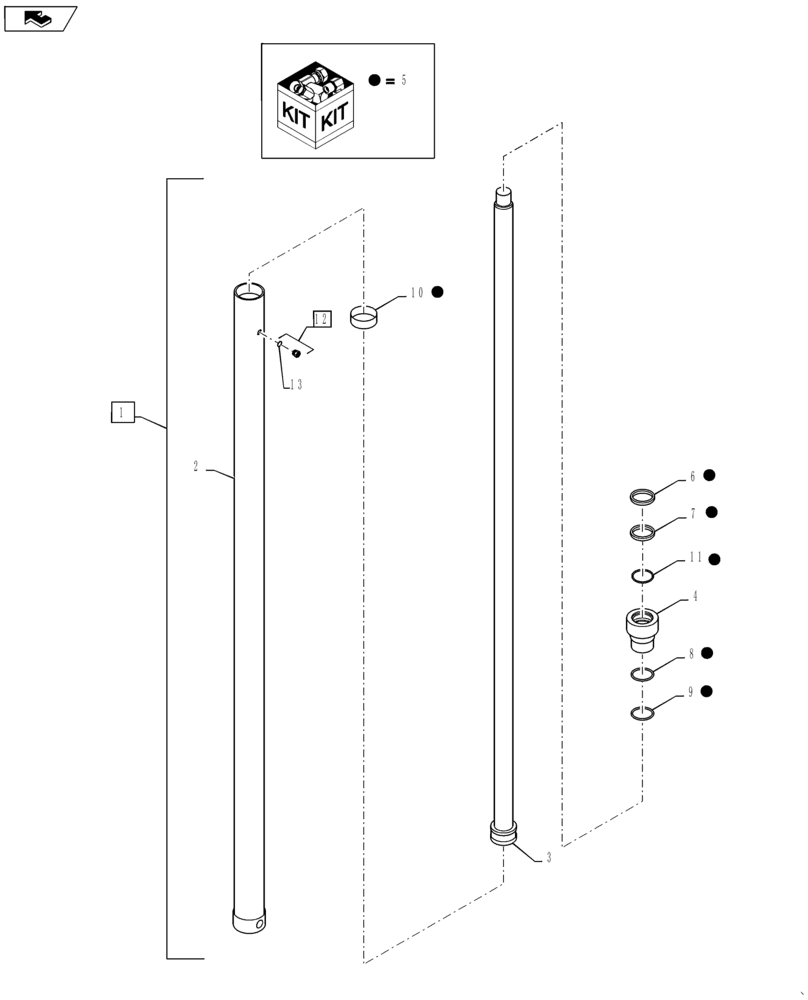

Запчасти Case IH 588H (35.740.AE[04]) - 8000 LB, 22 FT, 3 STAGE CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

337689A1

CYLINDER ASSY.

Rail, Mast Lift Incl 2 - 13

2шт.

2

337690A1

TUBE

1шт.

3

337691A1

PISTON ROD

1шт.

4

337692A1

NUT

Gland

1шт.

5

337716A1

KIT

Seal, Incl 6 - 11

1шт.

6

337727A1

WIPER

1шт.

7

363140A1

CUP

1шт.

8

337728A1

O-RING

1шт.

9

337730A1

BACK-UP RING

1шт.

10

337725A1

RING

1шт.

11

363141A1

SEAL

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 12

1шт.
