(35.300.AQ[02]) - HYDRAULIC RESERVOIR AND BATTERY BOX

Запчасти Case IH 588H (35.300.AQ[02]) - HYDRAULIC RESERVOIR AND BATTERY BOX (35) - HYDRAULIC SYSTEMS

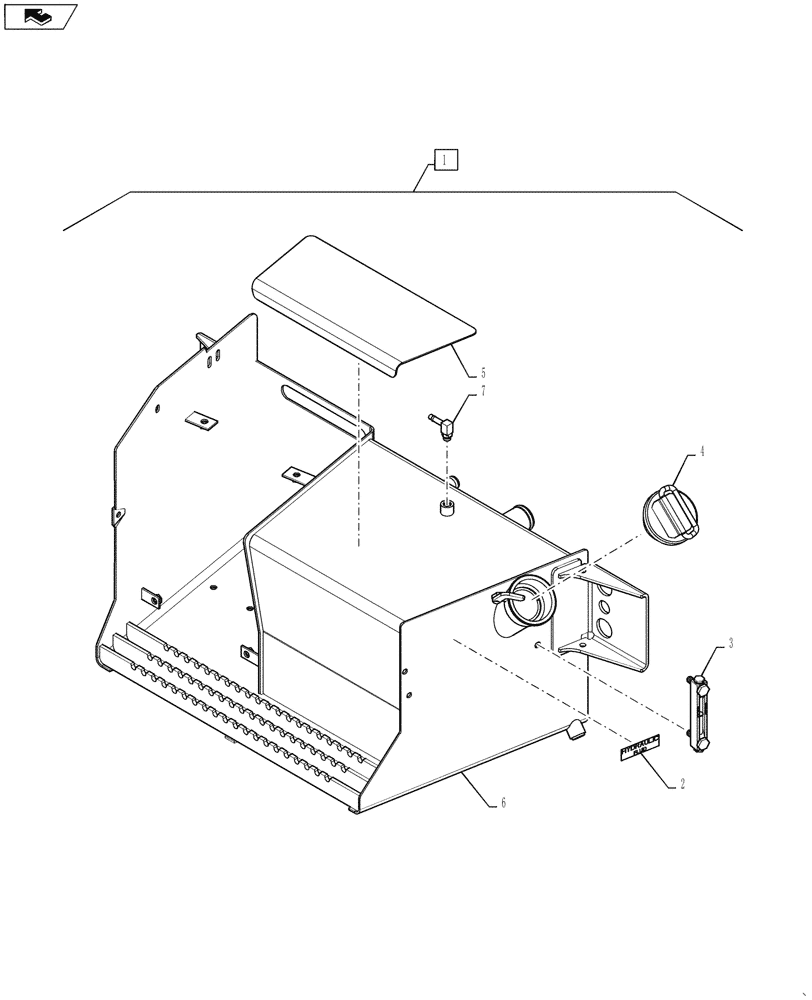

Схема запчастей Case IH 588H - (35.300.AQ[02]) - HYDRAULIC RESERVOIR AND BATTERY BOX (35) - HYDRAULIC SYSTEMS
2
7
3
5
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47959679

Incl 2 - 7

RESERVOIR, HYDRAULIC,52.6 L

1шт.

2

48008743

Hydraulic Fluid

DECAL

1шт.

3

226456A1

LEVEL GAUGE

Liquid

1шт.

4

138595A1

FILLER CAP,Male, Lockable

Hydraulic

1шт.

5

87679232

ANTI-SKID STRIP

Black

1шт.

6

47959677

Painted

RESERVOIR, HYDRAULIC

1шт.

7

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

1шт.
