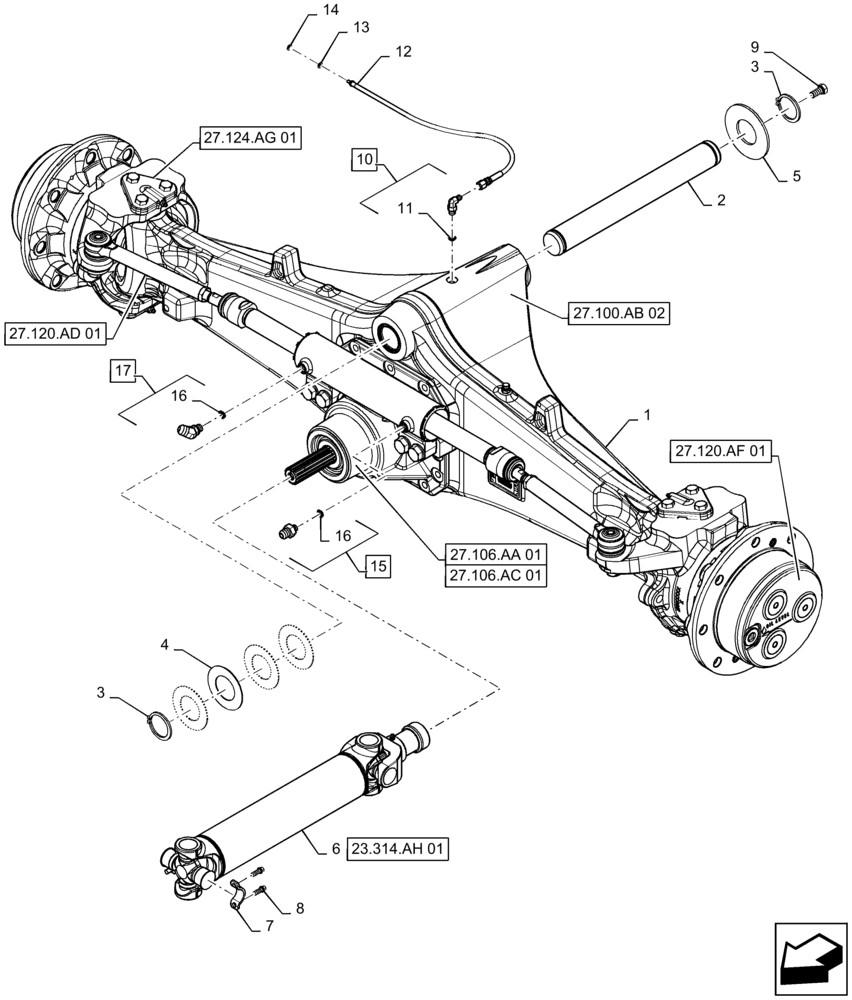

Запчасти Case IH 588H (27.100.AB[01]) - STEERING AXLE, 4WD (27) - REAR AXLE SYSTEM

1

84497927

Assembly

FRONT AXLE

1шт.

2

391451A1

PIVOT PIN,50mm OD x 431.5mm L

Axle

1шт.

3

800-44050

SNAP RING,M50, Ext

2шт.

4

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

5

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

6

87694656

DRIVE SHAFT

Front

1шт.

See Fig 23.314.AH (01) For Service Parts

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Driveshaft

4шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl 11

1шт.

11

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in10

1шт.

12

87572760

HOSE ASSY.,6.4mm ID x 533mm L

Grease

1шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

14

F53473

LOCK NUT,1/8-27 NPSM

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl 16

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 15, 17

2шт.

17

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 16

1шт.
