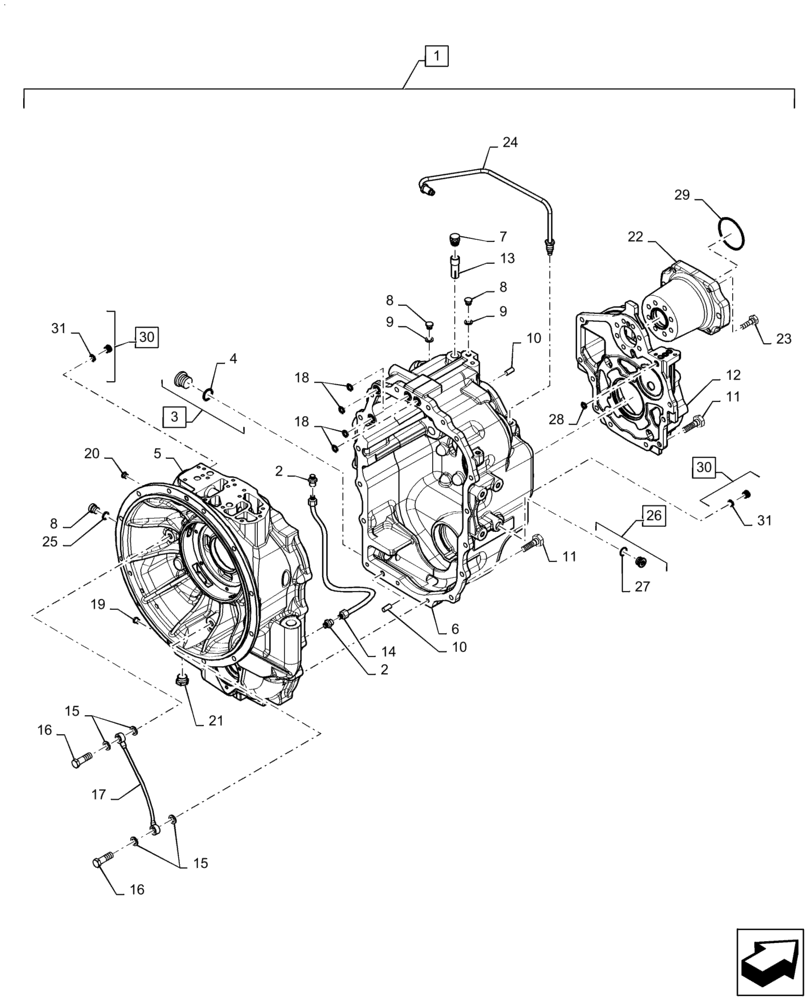

Запчасти Case IH 586H (21.114.AL[03]) - TRANSMISSION HOUSING, 4WD (21) - TRANSMISSION

1

84468417

Assembly, Incl 2 - 31

TRANSMISSION HOUSING

1шт.

2

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

1шт.

3

100557A1

PLUG, DRAIN,M30 x 2

Incl 4

1шт.

4

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

Incl in 3

1шт.

5

84318195

HOUSING

Front Transmission

1шт.

6

87701777

TRANSMISSION HOUSING

Rear Transmission

1шт.

7

1530028C1

BREATHER

Housing

1шт.

8

181100A1

PLUG,1/8 CAS x 8

4шт.

9

934667R1

SEALING RING,M10 x 14 x 1

3шт.

10

K260117

GUIDE PIN

Dowel

3шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

17шт.

12

87701257

COVER

Transmission

1шт.

13

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

1шт.

14

181176A1

TUBE

Oil

1шт.

15

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

16

181179A1

BANJO BOLT

2шт.

17

181232A1

TUBE

Lubrication

1шт.

18

181141A1

O-RING,17.12mm ID x 2.62mm Width

4шт.

19

87701779

RIVET,7mm OD

7шт.

20

181101A1

PLUG,M14 x 1.5

1шт.

21

239606A1

PLUG

1шт.

22

87701269

FLANGE

PTO

4шт.

23

87701258

BOLT,M10 x 1.5 x 45mm L

1шт.

24

87701270

PIPE

Oil

1шт.

25

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

26

1725741

PLUG,M20 x 1.5 x 14mm

Incl 27

1шт.

27

84288623

SEAL,17.8mm ID x 22.9mm OD x 1.5mm Thk

Incl in 26

1шт.

28

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

29

87429982

O-RING

2шт.

30

9625178

PLUG,9/16" - 18 ORB

Incl 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 30

1шт.
