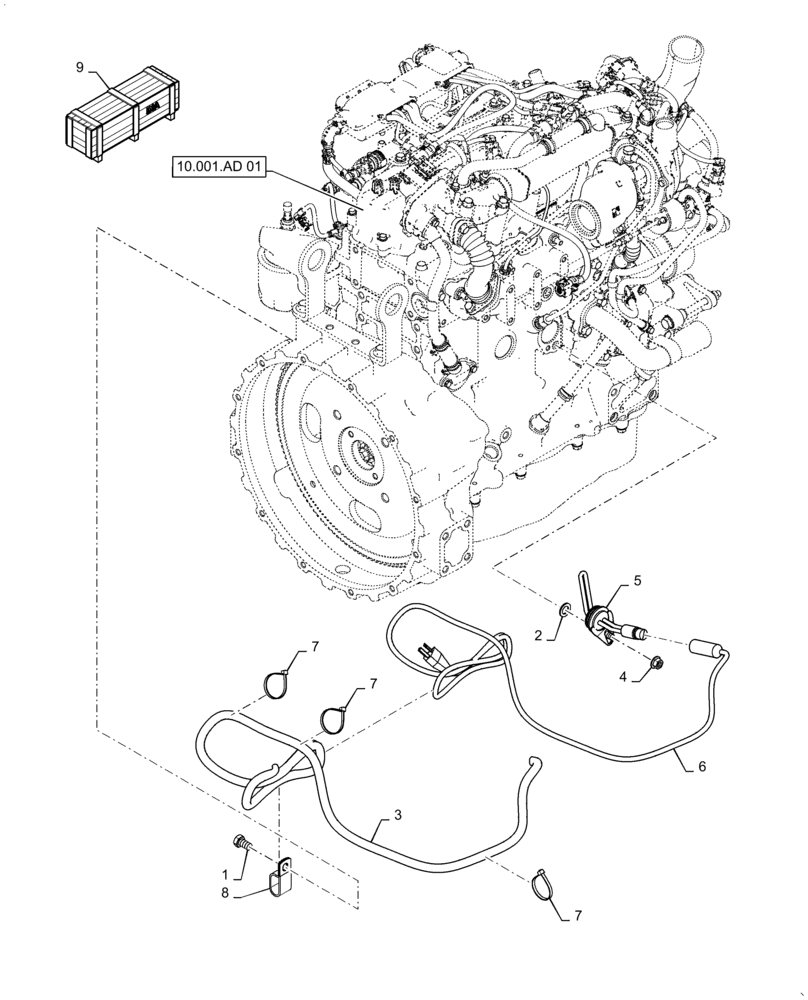

Запчасти Case IH 586H (55.202.AE[01]) - VAR - 423088 - BLOCK HEATER (55) - ELECTRICAL SYSTEMS

1

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

3

84546269

Hose

GUARD,10.5mm ID x 1975mm L

1шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

5

87693857

HEATER,820W - 120V

Assembly

1шт.

6

87693858

CABLE,Heater, 820W - 120V

Block Heater

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

8

L302731

CLAMP,19mm D Clamping Pipes

Double

1шт.

9

84562926

CONSTRUCTION DIA

Kit, Block Heater, Incl 1 - 8

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
