Запчасти Case IH 586H (41.200.BD[01]) - STEERING HYDRAULIC LINES AND FITTINGS (41) - STEERING

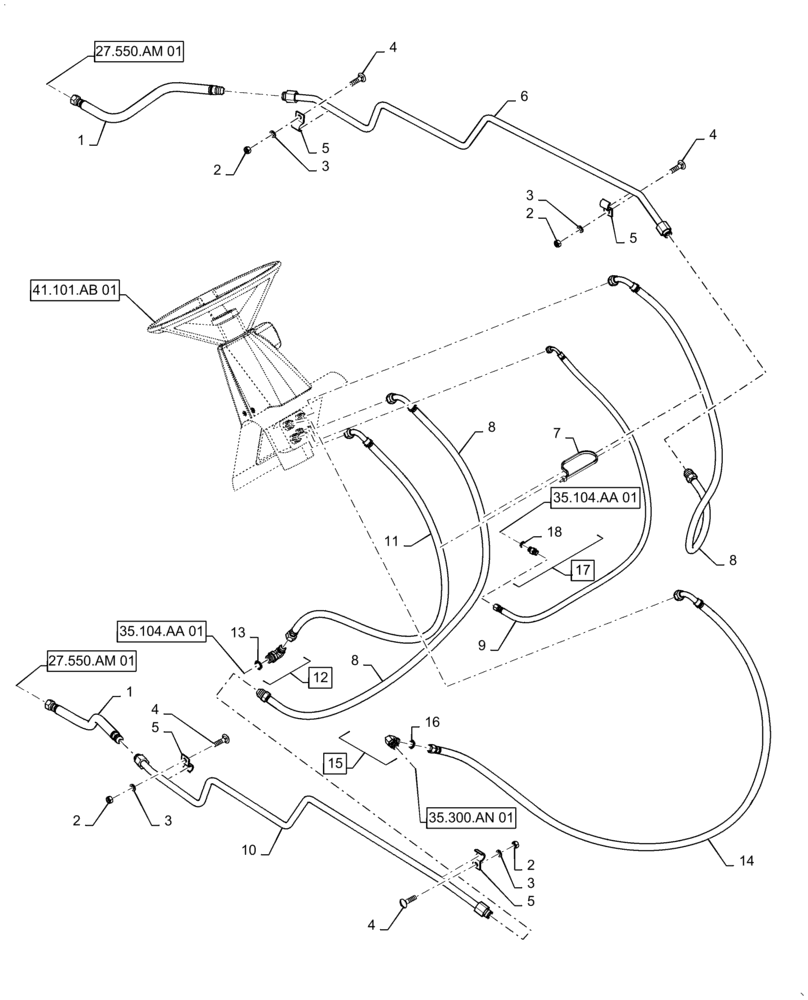

Схема запчастей Case IH 586H - (41.200.BD[01]) - STEERING HYDRAULIC LINES AND FITTINGS (41) - STEERING
8
27.550.am 01
3
9
5
10
4
2
14
7
8
3
18
2
41.101.ab 01
13
1
5
1
16
5
15
35.104.aa 01
17
27.550.am 01
2
4
35.300.an 01
5
3
2
6
12
4
3
35.104.aa 01
11
4
8

Артикул

Название

Примечание

Количество

1

144219A1

HOSE,9.53mm ID x 485mm L

Steering

2шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

4шт.

5

84134973

PIPE CLAMP

5/8 Diameter

4шт.

6

87484606

HYD TUBE,.625" OD

Left Hand Steering

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

8

338509A1

HOSE,9.53mm ID x 1350mm L

Steering

2шт.

9

338506A1

HOSE,6.35mm ID x 1200mm L

Steering Load Sense

1шт.

10

87484601

HYD TUBE,.625" OD

Right Hand Steering

1шт.

11

338507A1

HOSE,9.53mm ID x 1350mm L

Steering Pressure

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 13

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 12

1шт.

14

338508A1

HOSE,9.53mm ID x 1900mm L

Steering to Tank

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl 16

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 15

1шт.

17

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl 18

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 17

1шт.

Выбрано товаров: 18
