(35.106.AD[01]) - PARKER PUMP ASSEMBLY, 18 GPM 586H

Запчасти Case IH 586H (35.106.AD[01]) - PARKER PUMP ASSEMBLY, 18 GPM 586H (35) - HYDRAULIC SYSTEMS

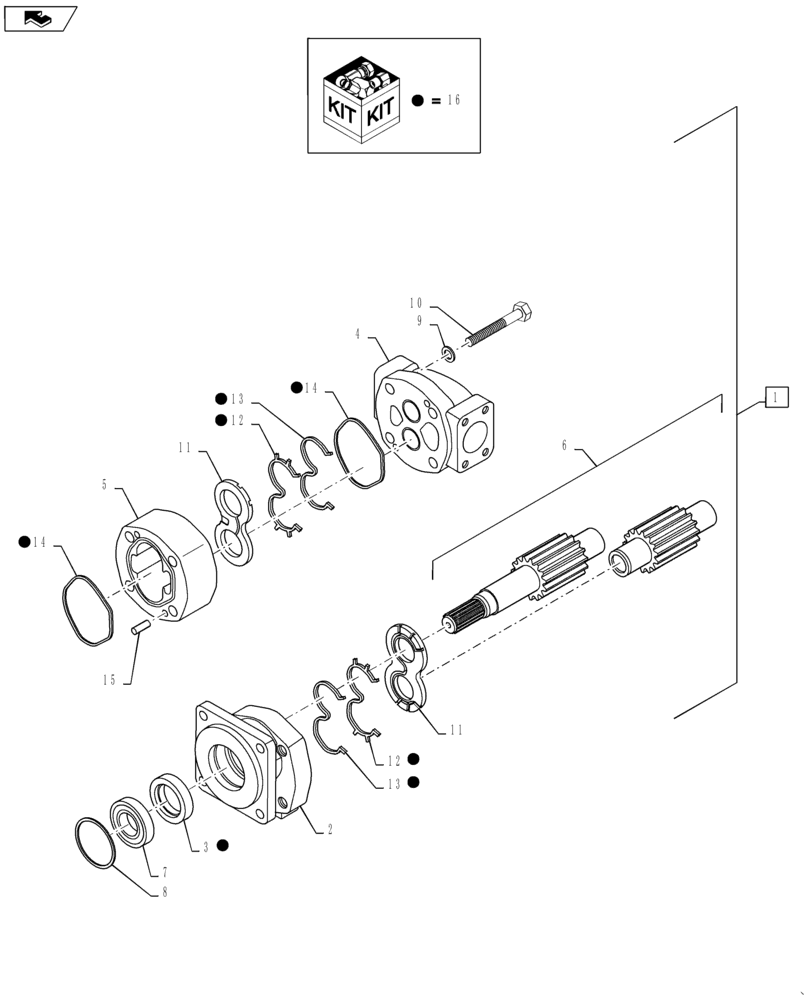

Схема запчастей Case IH 586H - (35.106.AD[01]) - PARKER PUMP ASSEMBLY, 18 GPM 586H (35) - HYDRAULIC SYSTEMS
11
16
13
16
15
13
1
7
16
4
16
2
8
9
14
5
10
3
12
home
16
16
16
16
12
6
11
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87677681

HYDRAULIC PUMP

Forklift Only 18 GPM , Incl 2 - 15, Years: -05-MAR-16

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Shaft End Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft Seal Incl in 16

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Closed End Incl In 1

1шт.

5

NSS

NOT SOLD SEPARAT

Housing, Gear, Shaft End Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Gear, Set Must Incl in 1

1шт.

7

73153

BALL

Bearing

1шт.

8

102-23206

SNAP RING,#206, 2.190", Int, Spiral

1шт.

9

3031159R1

WASHER

Cover

4шт.

10

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

4шт.

11

NSS

NOT SOLD SEPARAT

Thrus Plate Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Seal Incl in 16

2шт.

13

NSS

NOT SOLD SEPARAT

Back Up Ring Seal Incl in 16

2шт.

14

NSS

NOT SOLD SEPARAT

Seal Incl in 16

2шт.

15

W16323

DOWEL

Pin

4шт.

16

341552A1

SEAL KIT

Incl 3, 12 - 14

1шт.
