Запчасти Case IH 586H (35.104.AA[01]) - HYDRAULIC LINE INSTALLATION - W/PARKER PUMP (BEFORE MARCH 2016) (35) - HYDRAULIC SYSTEMS

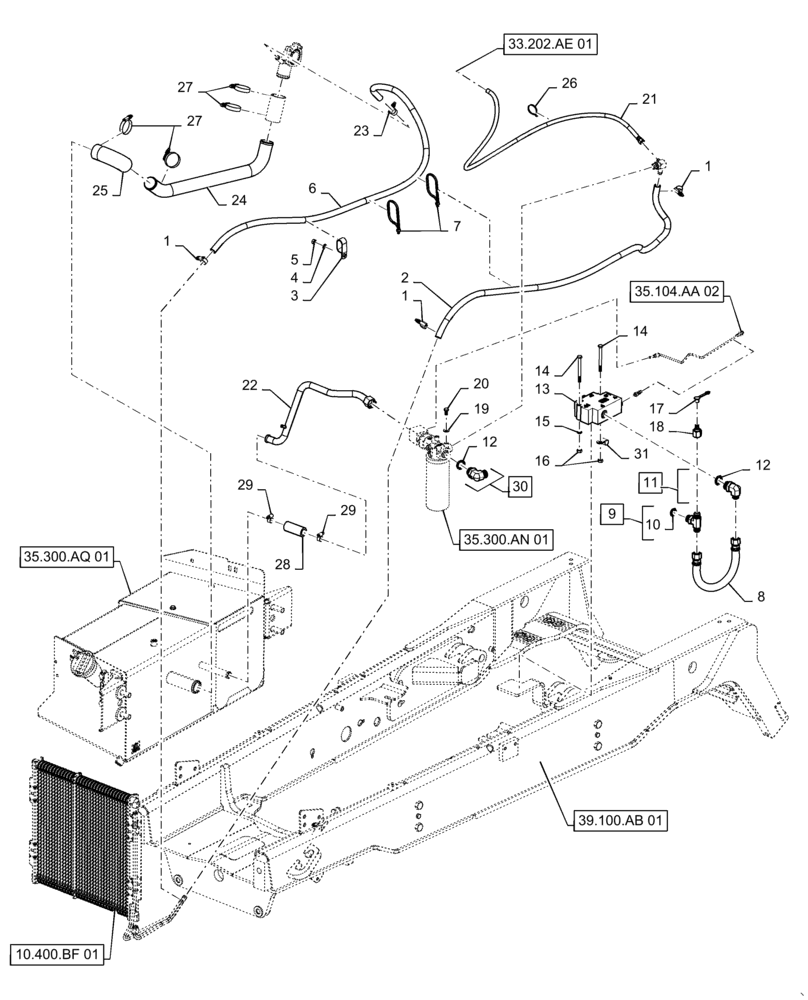

Схема запчастей Case IH 586H - (35.104.AA[01]) - HYDRAULIC LINE INSTALLATION - W/PARKER PUMP (BEFORE MARCH 2016) (35) - HYDRAULIC SYSTEMS
13
18
35.104.aa 02
20
24
4
1
14
27
25
35.300.aq 01
16
33.202.ae 01
7
19
9
3
1
39.100.ab 01
35.300.an 01
29
1
8
22
12
21
17
6
27
23
10
31
14
12
28
30
5
15
26
11
2
10.400.bf 01
29

Артикул

Название

Примечание

Количество

1

328186A1

HOSE CLAMP,400mm L

Constant Torque

2шт.

2

84497367

To Cooler

HOSE

1шт.

3

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

87741914

HOSE,15.88mm ID x 1920mm L, SAE 100R16

Cooler To Pump

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

2шт.

8

87741915

HOSE ASSY.

Pump Outlet To Priority

1шт.

9

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl 10

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl 12

1шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

87548326

HYDRAULIC VALVE

Flow Divider

1шт.

14

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

15

892-11008

LOCK WASHER,8mm ID

5шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

17

H434163

DUST CAP

For Coupler

1шт.

18

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Nipple

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

9шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

9шт.

21

131676A1

HOSE,7.94mm ID x 1590mm L

Brake Fill

1шт.

22

47376303

HYD TUBE

Return Filter To Tank

1шт.

23

328186A1

HOSE CLAMP,400mm L

Torque

4шт.

24

84348013

Suction - Parker Pump

HYD TUBE

1шт.

25

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

Black Nylon

1шт.

27

259044A1

CLAMP

Hose

4шт.

28

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

Return Tube Coupler

1шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

30

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl 12

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 31
