(25.102.AD[02]) - DRIVE AXLE, DIFFERENTIAL LOCK

Запчасти Case IH 586H (25.102.AD[02]) - DRIVE AXLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

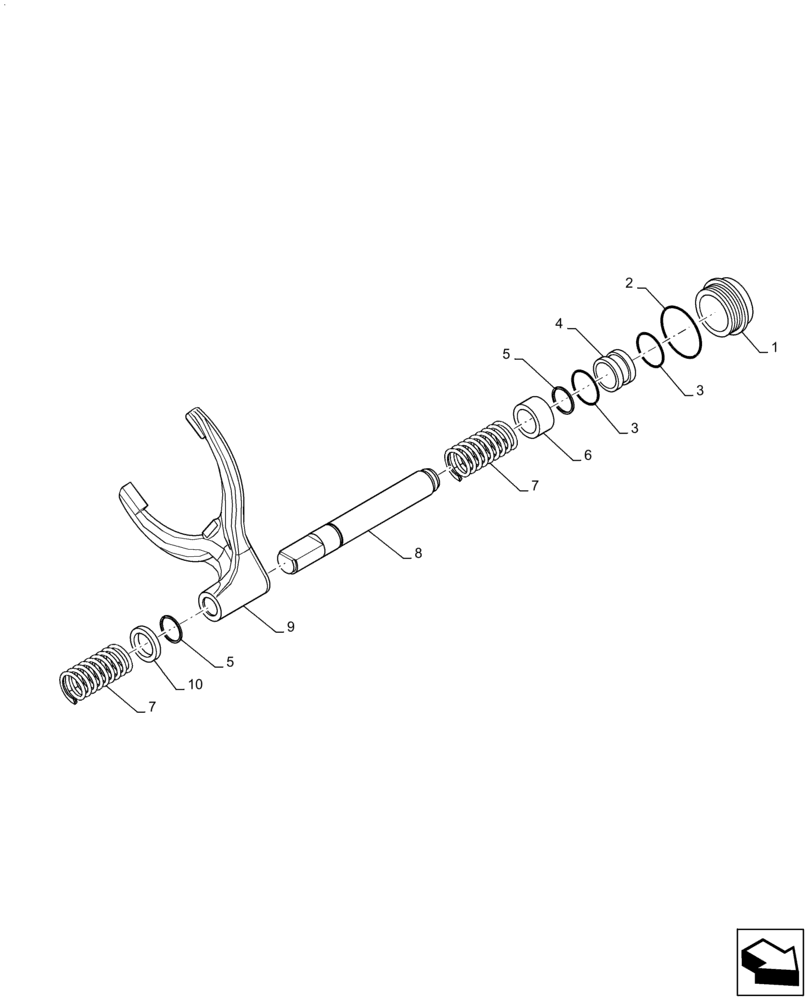

Схема запчастей Case IH 586H - (25.102.AD[02]) - DRIVE AXLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
10
9
2
5
6
7
7
5
3
8
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708413

CYLINDER

Differentail Locking

1шт.

2

87708415

O-RING

Rear Axle

1шт.

3

292210A1

SEAL

Piston

2шт.

4

292212A1

PISTON

Differential Lock

1шт.

5

87708417

CIRCLIP

Rear Axle

2шт.

6

87708420

BUSHING

Rear Axle

1шт.

7

175966A1

SPRING

Locking Axle

2шт.

8

87708422

PISTON

Control

1шт.

9

87708424

FORK

Rear Axle

1шт.

10

87708427

SPACER

Rear Axle

1шт.

Выбрано товаров: 10
