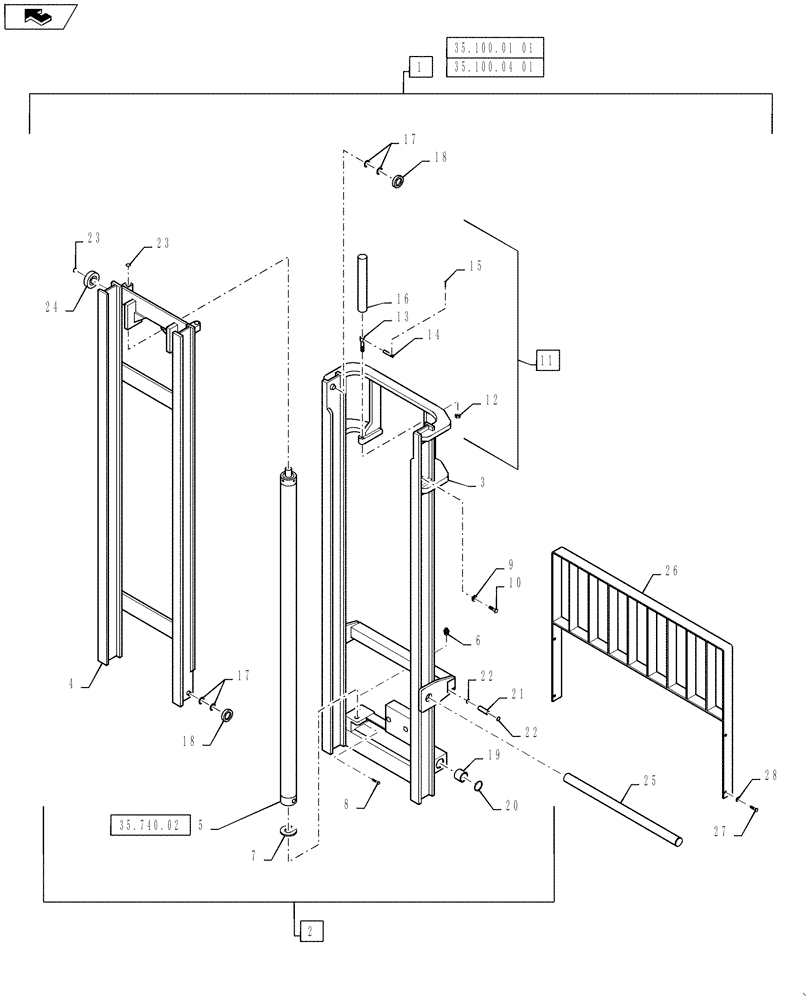

Запчасти Case IH 586H (35.100.01) - MAST ASSEMBLY 6000 LB 4.5M 15 FEET (35) - HYDRAULIC SYSTEMS

356483A2

KIT

KIT, MAST ASSY 6K 15' 60" HOOK MAST, Incl 324494A3

1шт.

1

324494A3

MAST ASSEMBLY

4.5 M (15 ft), Hook, Incl 2 - 24, Also Incl Parts On Figure 35.100.01(01),35.100.04(01)

1шт.

1

356478A2

KIT

4.5 M (15 ft), Shaft, Incl 2 - 24, Also Incl Parts On Figure 35.100.01(01), 35.100.04(01)

1шт.

2

341188A1

RAIL ASSY.

Incl 2 - 24 Also Incl Parts On figures 35.100.04(01)

1шт.

3

341185A1

RAIL

Outer

1шт.

4

341186A1

RAIL

Inner

1шт.

5

341187A1

CYLINDER ASSY.

Rail, See Figure 35.740.02

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

339786A1

SHIM

0.76 mm (0.03 in)

1шт.

8

339777A1

BOLT

Mast

2шт.

9

492-11075

LOCK WASHER,3/4"

2шт.

10

339778A1

BOLT

Mast

2шт.

11

341184A1

CHAIN (CE)

Incl 12 - 16

2шт.

12

231-24412

LOCK NUT,3/4"-16, GB

4шт.

13

341172A1

ANCHOR

Chain

4шт.

14

341173A1

PIN

Dowel

4шт.

15

432-612

COTTER PIN,3/32" x 3/4"

8шт.

16

341183A1

CHAIN (AG)

Mounts Through Carriage Chain Anchor

2шт.

17

339897A1

SHIM

0.76 mm (0.03 in)

1шт.

18

339898A1

ROLLER

Load

4шт.

19

339787A1

BUSHING

Mast

2шт.

20

103-21300

SNAP RING,3.00", Int, #300

2шт.

21

339789A1

PIN

Dowel

2шт.

22

103-11125

SNAP RING,#125, Ext

4шт.

23

100-11156

SNAP RING,#156, Ext

4шт.

24

341171A1

SHEAVE,36.6mm ID x 107.9mm OD

Chain

2шт.

25

329457A1

SHAFT

Pivot,Mast

1шт.

26

329795A1

BACKREST,1524mm (60 inch)

1524 mm (60 in), Load

1шт.

26

47766279

BACKREST,2438.4mm (96 inch)

1шт.

27

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

28

492-11062

BEARING WASHER,5/8"

4шт.
