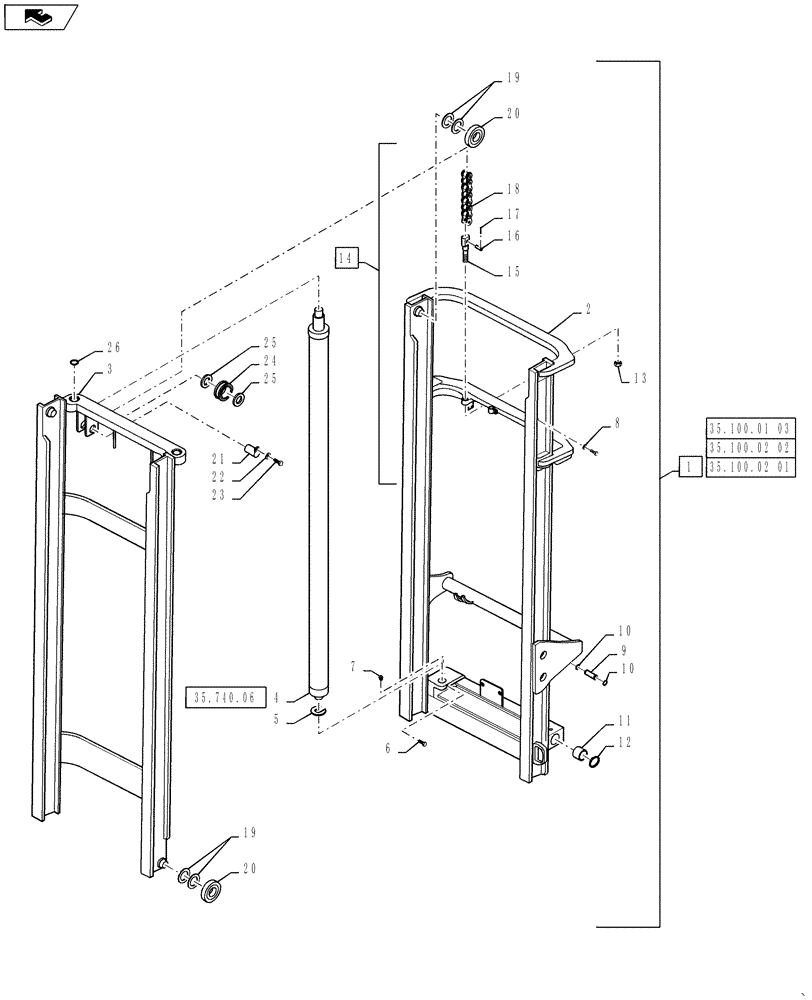

Запчасти Case IH 586H (35.100.01[02]) - MAST ASSEMBLY 6000 LB 6.6 M 22 FEET FREE LIFT (35) - HYDRAULIC SYSTEMS

1

348368A3

MAST ASSEMBLY

6.6 M (22 ft), Hook, Incl 2 - 39, 43 , 44 , Also Incl. Parts On Figure 35.100.02(01) , 35.100.02(02), 35.100.01(03)

1шт.

1

329739A3

MAST ASSEMBLY

6.6 M (22 ft), Shaft, Incl 2 - 39, 43, 44, Also Incl Parts On Figure 35.100.02(01), 35.100.02(02), 35.100.01(03)

1шт.

1

353009A1

MAST ASSEMBLY

Incl 2 - 39, Also Incl Parts On Figure 35.100.02(01), 35.100.01(03)

1шт.

2

352982A1

RAIL

Outer

1шт.

3

352984A1

RAIL

Intermediate

1шт.

4

348729A1

CYLINDER ASSY.

Rail, See Figure 35.740.06

2шт.

5

339786A1

SHIM

0.76 mm (0.03 in)

1шт.

6

339777A1

BOLT

Mast

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

492-11075

LOCK WASHER,3/4"

2шт.

9

339789A1

PIN

Dowel

2шт.

10

103-11125

SNAP RING,#125, Ext

2шт.

11

339787A1

BUSHING

Mast

4шт.

12

103-11125

SNAP RING,#125, Ext

2шт.

13

231-24412

LOCK NUT,3/4"-16, GB

8шт.

14

341175A1

CHAIN (CE)

Kit Mast, Incl 13, 15-18

2шт.

15

341172A1

ANCHOR

Chain

8шт.

16

341173A1

PIN

Dowel

8шт.

17

432-612

COTTER PIN,3/32" x 3/4"

16шт.

18

341174A1

CHAIN (CE)

Mast

2шт.

19

339897A1

SHIM

0.76 mm (0.03 in)

1шт.

20

339898A1

ROLLER

Load

8шт.

21

352989A1

PIN

Dowel

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

24

341171A1

SHEAVE,36.6mm ID x 107.9mm OD

Chain

4шт.

25

352990A1

RETAINER

Clip

4шт.

26

100-11156

SNAP RING,#156, Ext

4шт.
