Запчасти Case IH 586H (33.202.01) - BRAKES MASTER CYLINDER, RESERVOIR INSTALLATION (33) - BRAKES & CONTROLS

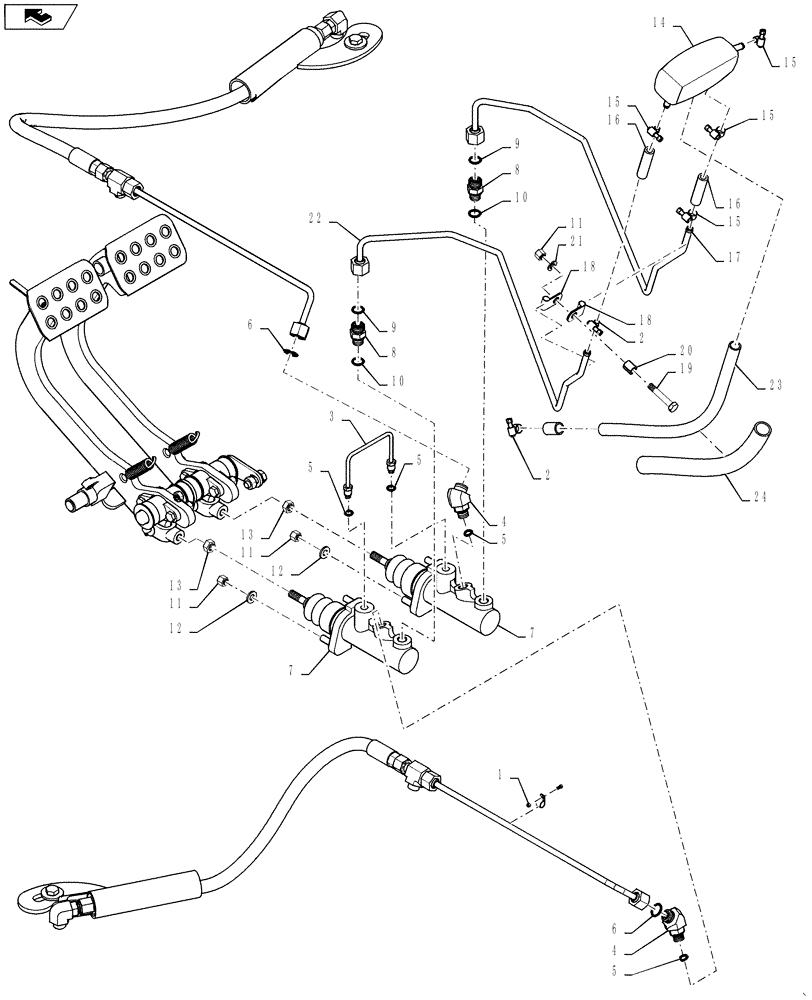

Схема запчастей Case IH 586H - (33.202.01) - BRAKES MASTER CYLINDER, RESERVOIR INSTALLATION (33) - BRAKES & CONTROLS
24
5
5
11
10
2
23
home
9
13
5
6
15
22
8
2
18
10
16
11
15
6
13
7
1
9
7
19
4
11
20
8
4
14
15
21
12
12
16
3
15
18
17
5

Артикул

Название

Примечание

Количество

1

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

2

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

3

D136430

TUBE

Crossover

1шт.

4

87562344

ELBOW

Incl 5 - 6

2шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

7

84164175

BRAKE CYLINDER,36mm Stroke

Master, 1.25

2шт.

8

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 9 - 10

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

12

87655042

Plate

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

184627A2

BRAKE FLUID TANK

Master Brake

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

16

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

Reservoir to Master Cylinder

2шт.

17

84348650

Brake Fill, Right Side

TUBE

1шт.

18

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

2шт.

19

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

20

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

12.7mm OD

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

84348652

Brake Fill, Left Side

TUBE

1шт.

23

353834A1

HOSE

Brake Return

1шт.

24

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Gaurd

1шт.

Выбрано товаров: 24
