Запчасти Case IH 586H (33.110.01) - TRANSMISSION, PARKING BRAKE (33) - BRAKES & CONTROLS

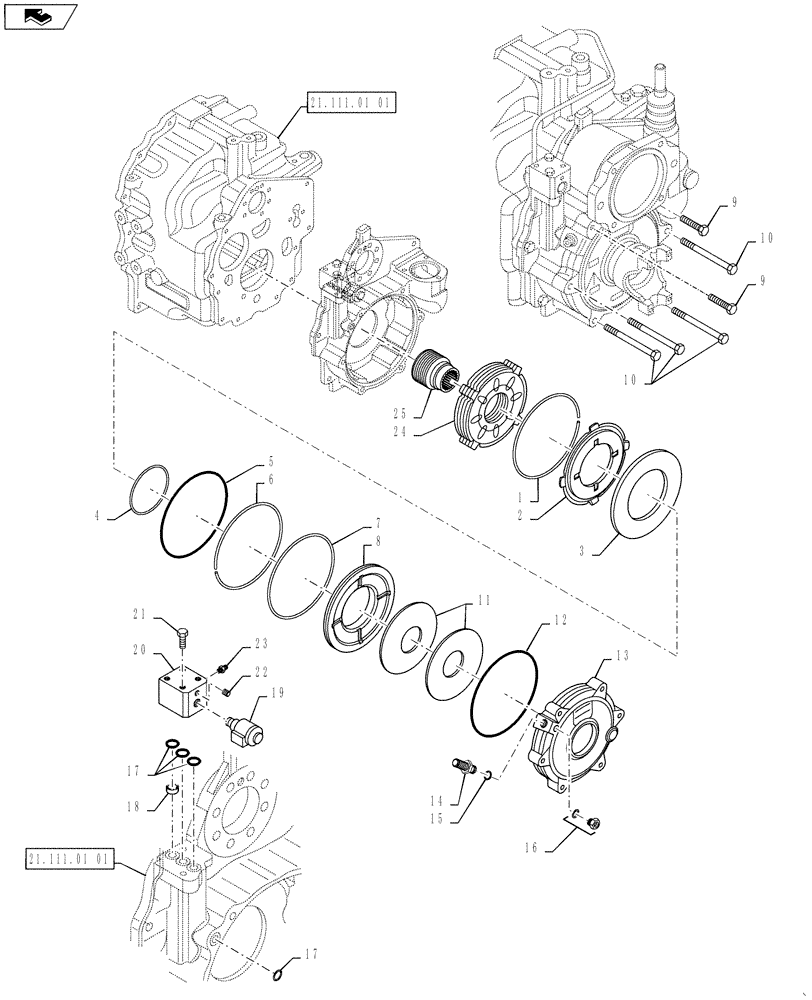

Схема запчастей Case IH 586H - (33.110.01) - TRANSMISSION, PARKING BRAKE (33) - BRAKES & CONTROLS
24
3
21
22
9
9
8
19
14
10
4
25
2
17
12
home
10
16
6
13
11
21.111.01 01
15
1
18
5
7
17
23
21.111.01 01
20

Артикул

Название

Примечание

Количество

1

87701325

SPACER

Transmission

5шт.

2

87701324

BRAKE PLATE

Transmission

1шт.

3

87701323

RETAINING PLATE

Transmission

1шт.

4

87701321

SEALING RING

Oil

1шт.

5

87701320

O-RING

Transmission

1шт.

6

87701315

RING

Stop

1шт.

7

87701318

SEALING RING

Transmission

1шт.

8

87701317

PISTON

Brake

1шт.

9

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

10

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

11

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

Plate

2шт.

12

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

1шт.

13

87701309

COVER

Brake

1шт.

14

87701313

SENSOR

Transmission Pressure

1шт.

15

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

Seal

1шт.

16

9625178

PLUG,9/16" - 18 ORB

Incl O-Ring

1шт.

17

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

18

87701333

ORIFICE

Transmission

1шт.

19

87701329

SOLENOID

Electro Valve

1шт.

20

87701330

CONTROL BLOCK

Hydraulic

1шт.

21

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

22

139312A1

PLUG,Expansion, 6mm OD

Expansion 6mm

1шт.

23

933781R1

LUBE NIPPLE,M10 x 1

1шт.

24

87701327

BRAKE PACKAGE

Transmission

1шт.

25

87701328

BUSHING

Link

1шт.

Выбрано товаров: 25
