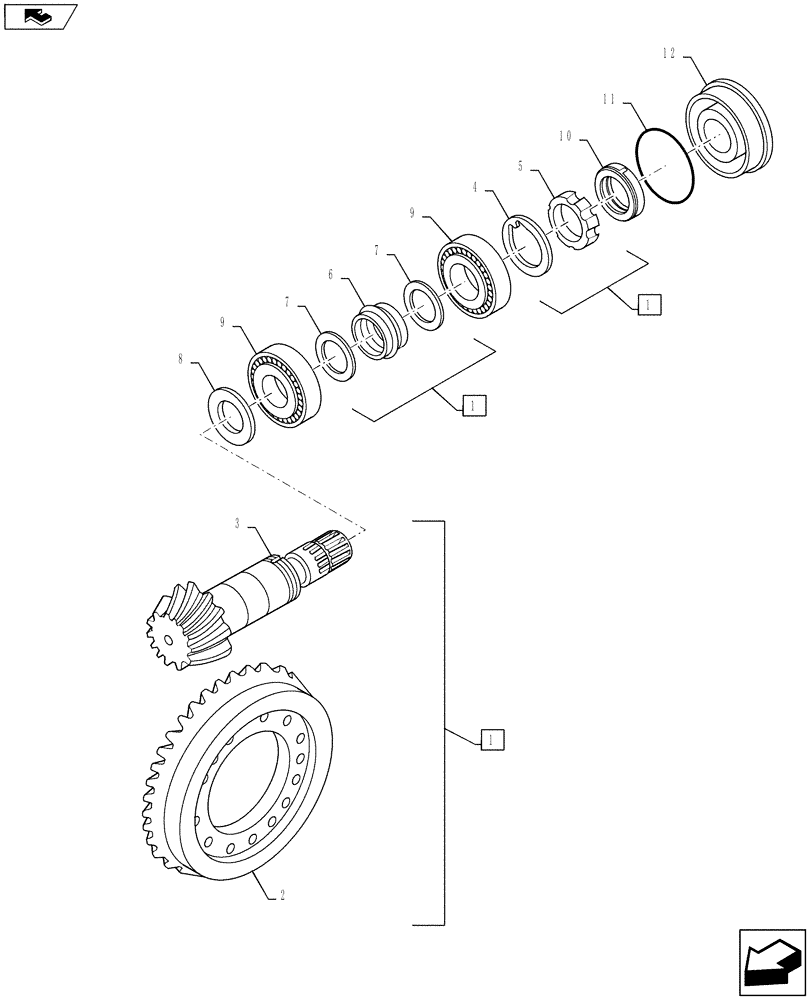

Запчасти Case IH 586H (27.106.02) - STEERING AXLE, RING AND PINION, 4WD (27) - REAR AXLE SYSTEM

1

144460A1

GEAR SET

Ring and Pinion, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Gear, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Pinion Gear, Incl in 1

1шт.

4

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

Gear Set

1шт.

5

K261014

RING NUT,M40 x 1.5

Gear Set

1шт.

6

1349058C1

SPACER

Collapsible

1шт.

7

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

Gear Set

2шт.

8

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

8

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

8

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

8

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

8

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

8

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

8

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

8

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

8

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

8

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

9

K395090

TAPERED BEARING,40mm ID x 90mm OD

Taper 40mm ID 90mm OD

2шт.

10

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Ring

1шт.

11

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

128570A1

FLANGE

Differential

1шт.
