Запчасти Case IH 586H (21.134.03) - TRANSMISSION VALVE CONTROL (21) - TRANSMISSION

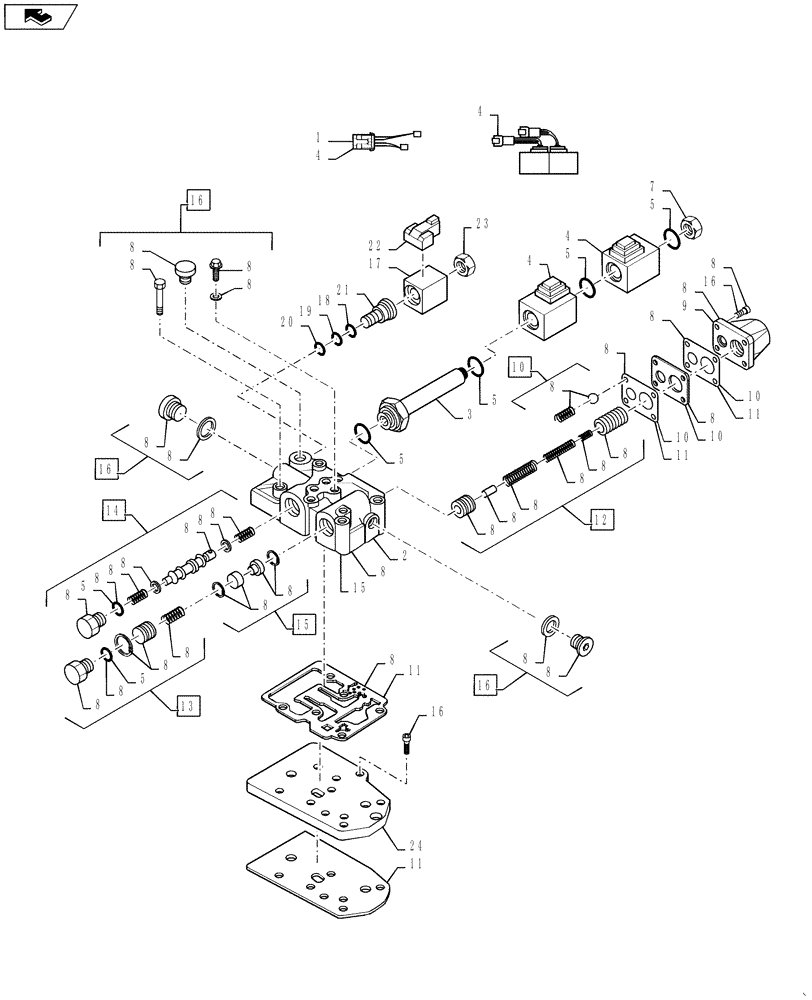

Схема запчастей Case IH 586H - (21.134.03) - TRANSMISSION VALVE CONTROL (21) - TRANSMISSION
8
8
10
8
15
20
11
8
4
8
8
5
8
2
8
17
8
home
8
8
16
8
8
10
4
8
16
10
14
19
5
13
10
8
8
5
8
24
8
5
8
11
8
21
8
7
8
22
15
23
8
8
12
11
8
8
8
4
8
18
8
5
8
8
16
1
5
3
11
8
4
9
8
8
8
16
16

Артикул

Название

Примечание

Количество

1

87524409

CONTROL VALVE

Transmission Control, With Improved Snap Ring at Flow Divider Area; Incl 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Housing Incl in 1

1шт.

3

190442A1

PLUNGER

Solenoid

1шт.

4

87456900

SERVICE KIT

Solenoid (Used for Fwd/Rev) Incl (2) Solenoids

1шт.

5

87524436

REPAIR KIT

Seal Incl (6) O-Rings

1шт.

7

87530365

PLUG

Solenoid

1шт.

8

87524441

KIT

Valve Body Component Parts

1шт.

9

181251A1

COVER

Modulation

1шт.

10

87524439

REPAIR KIT

Plate Incl (1) Plate, (2) Gasket, (1) Ball, (1) Spring

1шт.

11

87524437

REPAIR KIT

Gasket Incl (2) Gasket Plates

1шт.

12

87524438

REPAIR KIT

Modulation Valve Incl (2) Piston, (1) Pin, (3) Springs

1шт.

13

87524433

REPAIR KIT

Flow Divider Piston Incl (1 each) Plug, O-Ring, Spring, Piston, Snap Ring

1шт.

14

87524432

REPAIR KIT

Forward Reverse Spool Incl (1) O-Ring, (2) Washer, (1) Plug, (1) Piston Spool, (2) Spring

1шт.

15

87524440

REPAIR KIT

Control Valve Body Housing Incl (1) Housing, Plus (1) Bushing, (2) Snap Rings at Flow Divider

1шт.

16

87524435

REPAIR KIT

Bolt Incl (7) Plugs, (13) Bolts, (6) Copper Washers

1шт.

17

349295A1

SOLENOID VALVE

Differential Lock Solenoid Valve; Incl 18 - 23

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, Cartridge Incl in 1

1шт.

22

298614A1

SOLENOID

Coil

1шт.

23

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

Jam

1шт.

24

181207A1

PLATE

Feeding Not Incl in 1

1шт.

Выбрано товаров: 23
