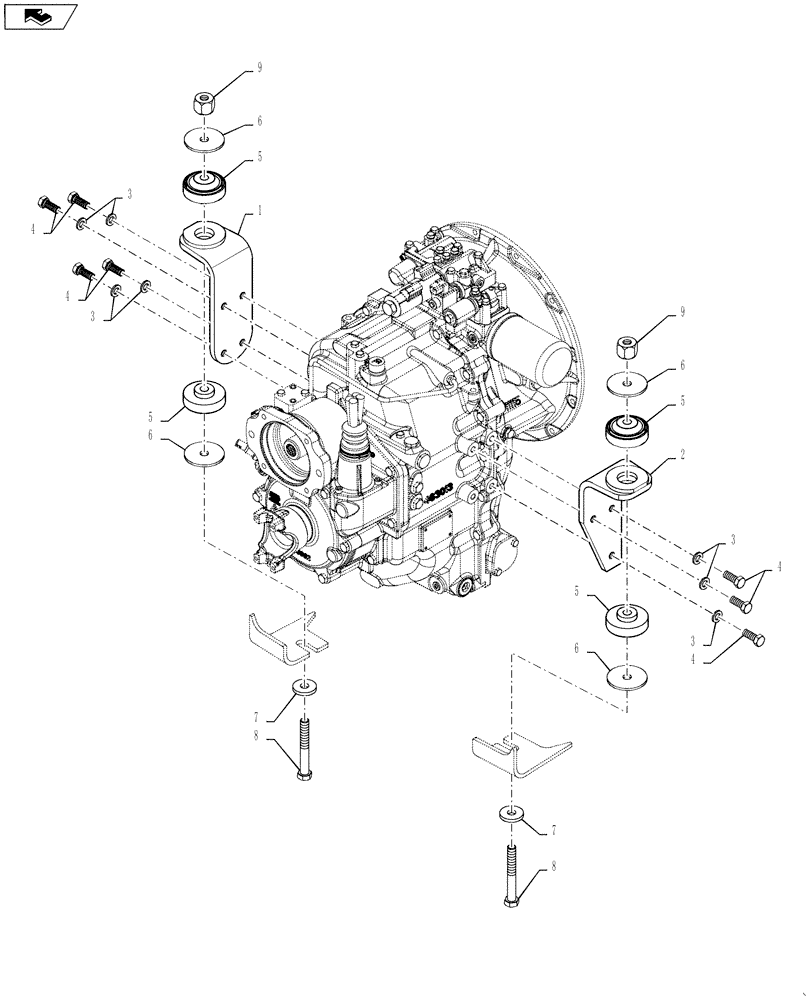

Запчасти Case IH 586H (21.111.03) - TRANSMISSION, MOUNTING PARTS, STANDARD (21) - TRANSMISSION

1

84567307

BRACKET

Left Hand

1шт.

2

84567310

BRACKET

Right Hand

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

4

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

5

84383342

MOUNT

Isolator

4шт.

6

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

0.656 X 3 X 0.179

4шт.

7

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

8

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

9

832-10416

NUT,M16 x 2, Cl 8

2шт.
