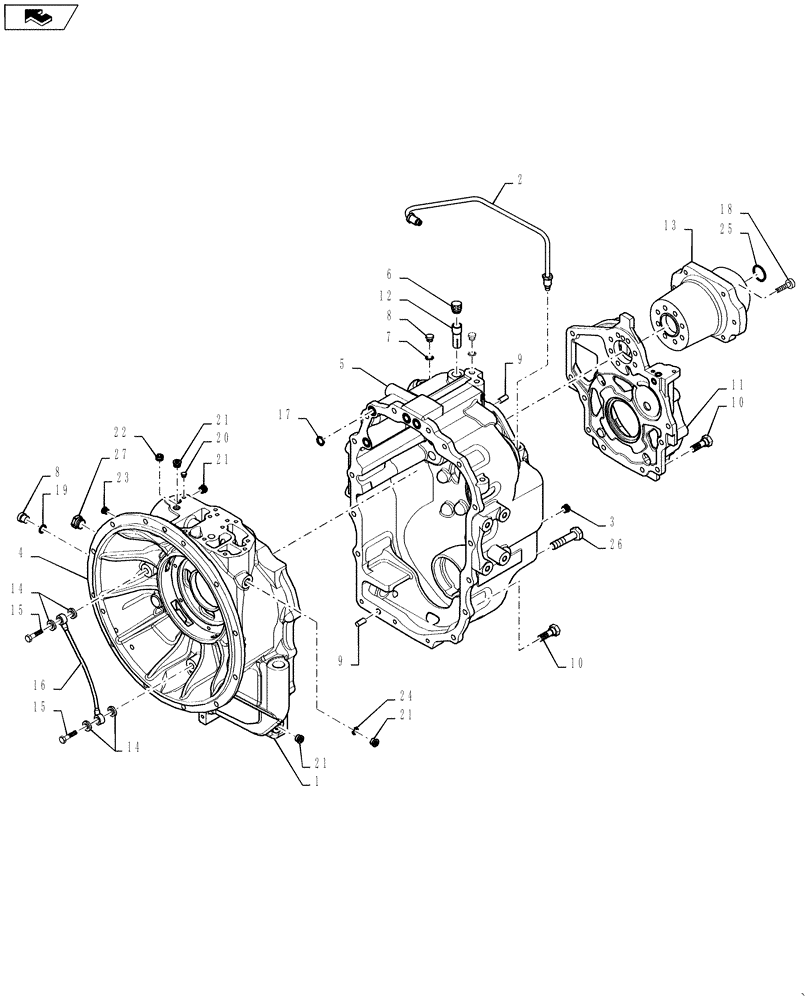

Запчасти Case IH 586H (21.111.01[01]) - TRANSMISSION HOUSING, 2WD (21) - TRANSMISSION

1

84468420

Assembly Incl 2 - 26

TRANSMISSION HOUSING

1шт.

2

87701270

PIPE

Oil

1шт.

3

100557A1

PLUG, DRAIN,M30 x 2

Carraro

1шт.

4

84318196

Front

HOUSING

1шт.

5

87701255

TRANSMISSION HOUSING

Rear

1шт.

6

1530028C1

BREATHER

Housing

1шт.

7

934667R1

SEALING RING,M10 x 14 x 1

3шт.

8

181100A1

PLUG,1/8 CAS x 8

1/8 Inch

4шт.

9

K260177

PIN

Dowel

3шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

17шт.

11

87701257

COVER

Transmission Housing

1шт.

12

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

1шт.

13

87701269

FLANGE

PTO

1шт.

14

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

Seal

4шт.

15

181179A1

BANJO BOLT

Screw

2шт.

16

181232A1

TUBE

Lubrication

1шт.

17

181141A1

O-RING,17.12mm ID x 2.62mm Width

4шт.

18

87701258

BOLT,M10 x 1.5 x 45mm L

M10 X 45

7шт.

19

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

Coupler Seal

1шт.

20

87701779

RIVET,7mm OD

Pop

1шт.

21

9625178

PLUG,9/16" - 18 ORB

Incl 27

4шт.

22

87701260

PLUG,M16 x 1.5

M16 X 1.5

1шт.

23

181101A1

PLUG,M14 x 1.5

M14 X 1.5

1шт.

24

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

26

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

2шт.
