Запчасти Case IH 586H (10.408.03[02]) - OIL COOLER INSTALLATION, HARDWARE AND LINES (10) - ENGINE

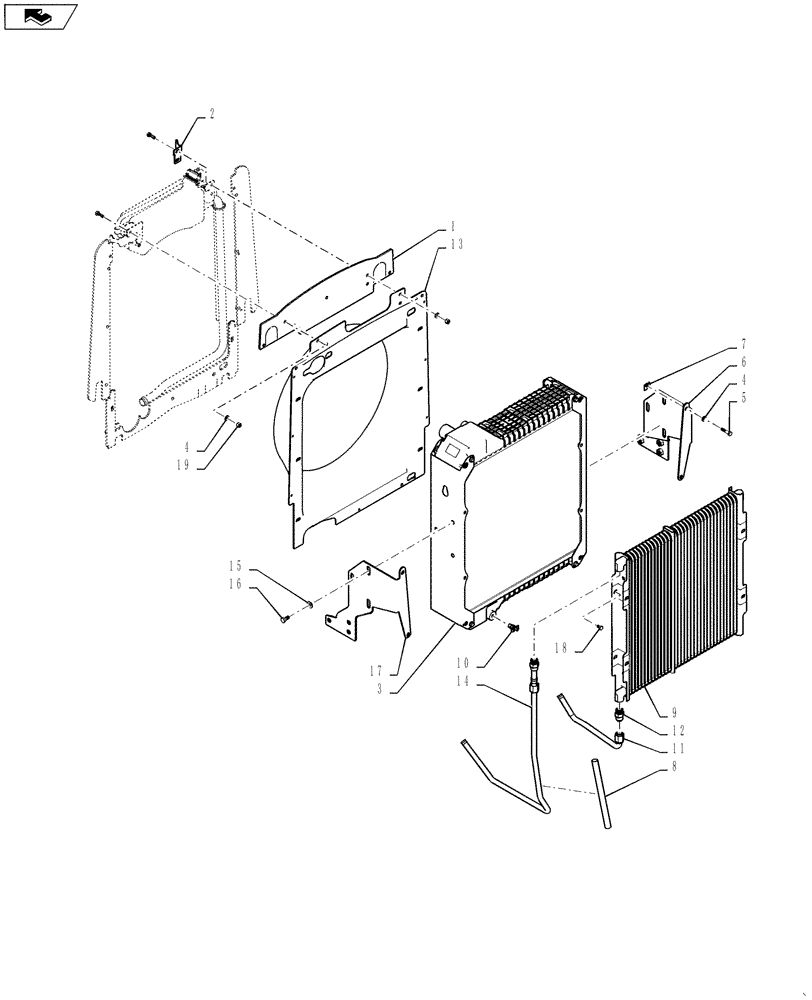

Схема запчастей Case IH 586H - (10.408.03[02]) - OIL COOLER INSTALLATION, HARDWARE AND LINES (10) - ENGINE
6
15
12
home
4
1
2
18
14
9
3
5
16
13
4
10
17
8
19
11
7

Артикул

Название

Примечание

Количество

1

87628324

SEAL,614mm L

Top Radiator

1шт.

2

84387500

Left Hand Charge Air Cooler Tube Support

BRACKET

1шт.

3

87576645

RADIATOR

5 Row

1шт.

4

87655042

M8

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

10шт.

5

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

6

84359479

BRACKET

Left Hand

1шт.

7

833-40408

NUT,M8, U

4шт.

8

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

Sprial Wrap

2шт.

9

87441876

OIL COOLER

Denso

1шт.

10

76904

DRAINCOCK/TAP SUPPLY

Drain Cock

1шт.

11

84485235

TUBE

Right Hand Lower

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

13

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

Right Hand Lower Shroud

1шт.

14

84485233

TUBE

Right Hand Upper

1шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

6шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

17

84359477

BRACKET

Right Hand Radiator

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

Выбрано товаров: 19
