Запчасти Case IH 586H (10.408.02) - CHARGE AIR COOLER, HOSE INSTALLATION (10) - ENGINE

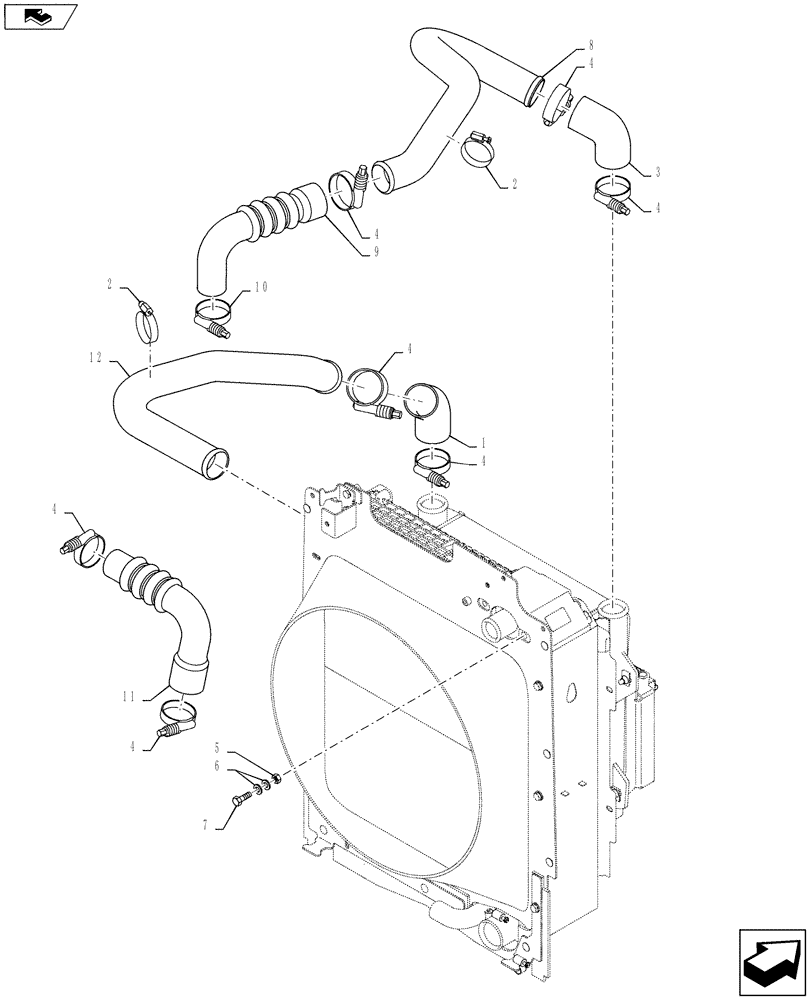

Схема запчастей Case IH 586H - (10.408.02) - CHARGE AIR COOLER, HOSE INSTALLATION (10) - ENGINE
4
2
8
7
3
4
10
4
2
6
4
9
4
4
1
home
12
5
4
11

Артикул

Название

Примечание

Количество

1

87548812

ELBOW

Outlet

1шт.

2

87647029

HOSE CLAMP,40-64mm

40-64 mm

2шт.

3

87548811

ELBOW

Inlet

1шт.

4

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

7шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

87655042

M8

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

84329351

Right Hand

TUBE

1шт.

9

84329352

AIR HOSE,40.5mm ID x 207.74mm L, Rubber

Charge Air

1шт.

10

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque

1шт.

11

84329353

AIR HOSE,55mm ID x 221.86mm L, Rubber

Charge Air

1шт.

12

84329350

Left Hand

TUBE

1шт.

Выбрано товаров: 12
