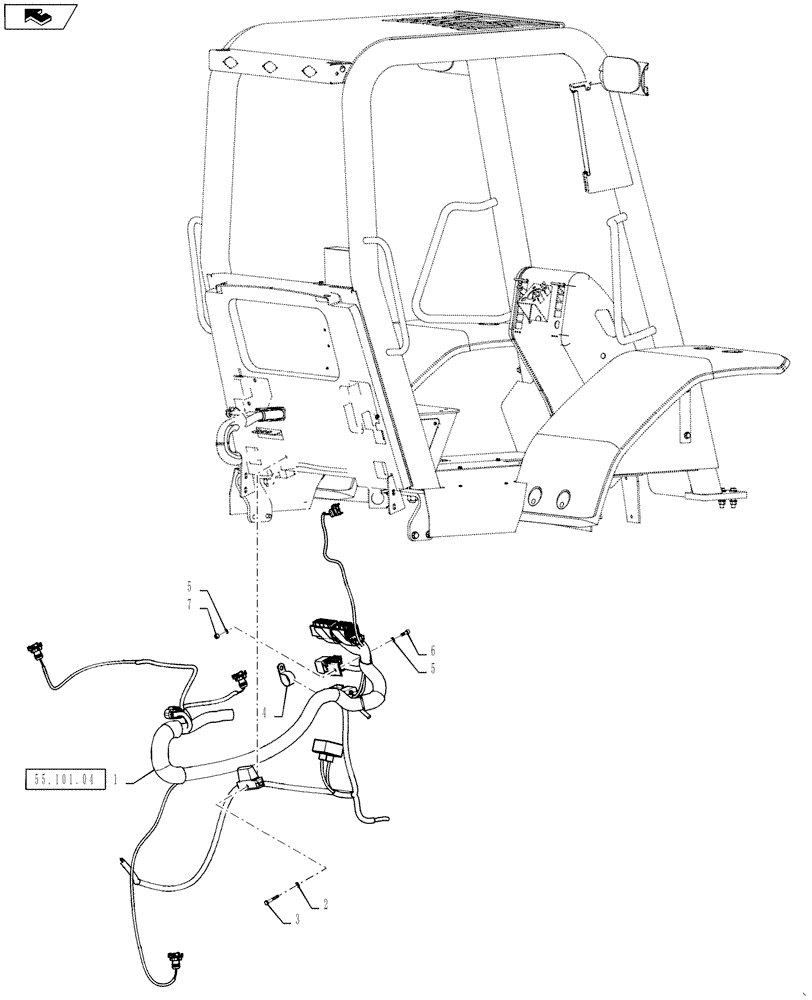

Запчасти Case IH 586H (90.150.02) - CAB REAR HARNESS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84543650

Engine Harness, See Fig. 55.101.04

WIRE HARNESS

1шт.

2

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

3

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

4

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

6

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

1шт.

7

832-10405

NUT,M5 x .8, Cl 8

1шт.
