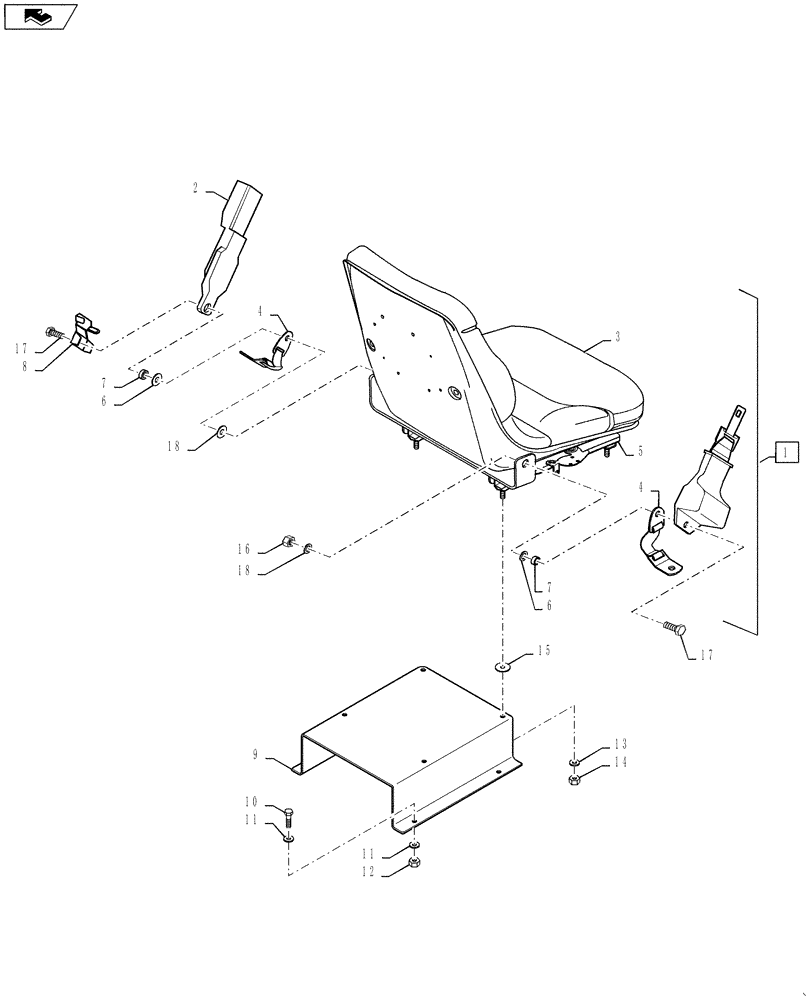

Запчасти Case IH 586H (90.120.04) - STANDARD SEAT, MECHANICAL SUSPENSION, INSTALLATION, (SEARS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87454300

SEAT ASSY.

Standard, Sears Brand; Incl 2 - 5

1шт.

2

87408889

SAFETY BELT ,50.80 mm W

1шт.

2

87408888

SAFETY BELT ,76.20 mm W

1шт.

3

87338685

SEAT BACK

Seat Top, Gray Vinyl

1шт.

4

87338686

SEAT ACCESSORY

Tether Belt, Two-Piece

1шт.

5

87338699

SEAT ACCESSORY

Slide Kit; Includes (1) Slide With Handle, (1) Locking Slide, (1) Slide Latch Rod, (4) Lock Nuts, (6) Flat Washers, (4) Bolts, (4) Washers

1шт.

6

495-81169

WASHER,17/32" x 2 1/2" x .120"

2шт.

7

D150391

SPACER

Zink

2шт.

8

87310149

BRACKET

Left-Hand Side

1шт.

9

352736A1

LARGE PLATE

Mounting

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

15

495-81010

WASHER,.469" x 1 1/4" x .060"

2шт.

16

232-4617

LOCK NUT,7/16"-20, GC

2шт.

17

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

18

496-81010

WASHER

15/32 x 1 x 7/64

4шт.
