Запчасти Case IH 586H (90.120.03) - STANDARD SEAT, MECHANICAL SUSPENSION, INSTALLATION, (MILASCO) (90) - PLATFORM, CAB, BODYWORK AND DECALS

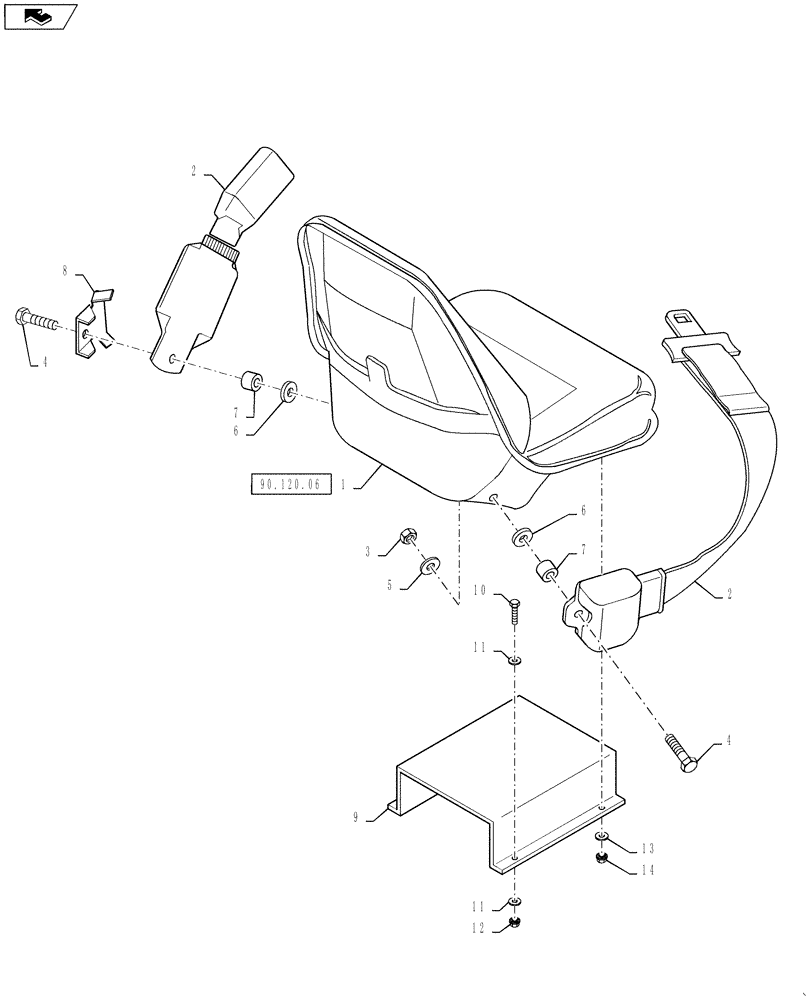

Схема запчастей Case IH 586H - (90.120.03) - STANDARD SEAT, MECHANICAL SUSPENSION, INSTALLATION, (MILASCO) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
13
10
6
2
12
11
7
2
11
7
8
4
5
3
14
90.120.06
9
4
6
1

Артикул

Название

Примечание

Количество

1

323314A1

SEAT ASSY.

Standard, Milsco Brand, See Fig. 90.120.06

1шт.

2

87408889

SAFETY BELT ,50.80 mm W

1шт.

2

87408888

SAFETY BELT ,76.20 mm W

1шт.

3

232-4617

LOCK NUT,7/16"-20, GC

2шт.

4

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

5

496-81010

WASHER

4шт.

6

495-81169

WASHER,17/32" x 2 1/2" x .120"

2шт.

7

D150391

SPACER

Zink

2шт.

8

D150392

BRACKET

Left-Hand Side

1шт.

9

352736A1

LARGE PLATE

Mounting

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

Выбрано товаров: 15
