Запчасти Case IH 586H (90.108.02) - CAB FENDER AND ROPS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

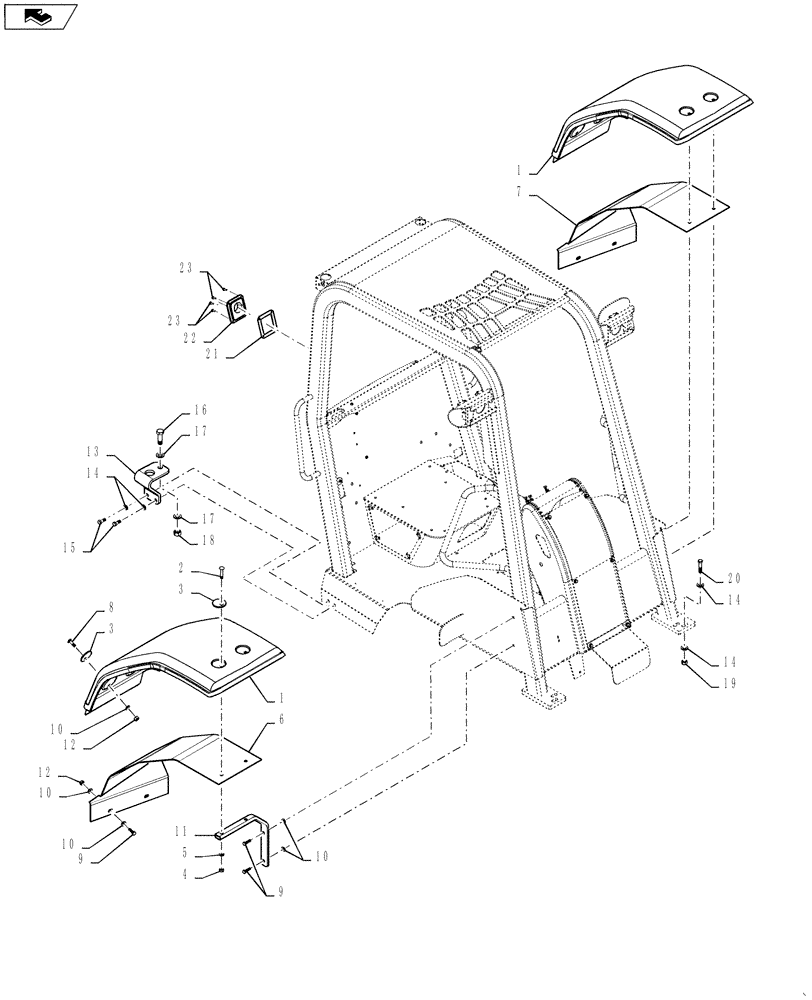

Схема запчастей Case IH 586H - (90.108.02) - CAB FENDER AND ROPS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
21
12
14
14
23
8
10
9
10
23
15
13
17
22
1
4
19
home
10
20
11
5
7
14
10
9
12
18
3
2
1
6
3
17
16

Артикул

Название

Примечание

Количество

1

319962A1

FENDER

Front Small

2шт.

2

345356A1

BOLT

M8

4шт.

3

345357A1

SQ HOLE WASHER

2 1/2 Inches

8шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

5

87655042

M8

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

6

320363A1

SUPPORT

Right Hand Fender

1шт.

7

320361A1

SUPPORT

Left Hand Fender

1шт.

8

345355A1

BOLT

M8 X 30

1шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

10

87655042

M8

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

12шт.

11

320215A1

BRACE

Upper

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

316082A1

MOUNTING PARTS

Front Pod

2шт.

14

87655043

M12

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

12шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

16

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

17

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20

4шт.

18

829-1420

NUT,M20, Cl 10

2шт.

19

829-1412

NUT,M12, Cl 10.9

4шт.

20

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

21

84498262

Rubber

GROMMET,80mm L, 90mm L, 30mm L

1шт.

22

84423177

Grommet Mounting Firewall

MOUNTING PLATE

1шт.

23

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

4шт.

Выбрано товаров: 23
