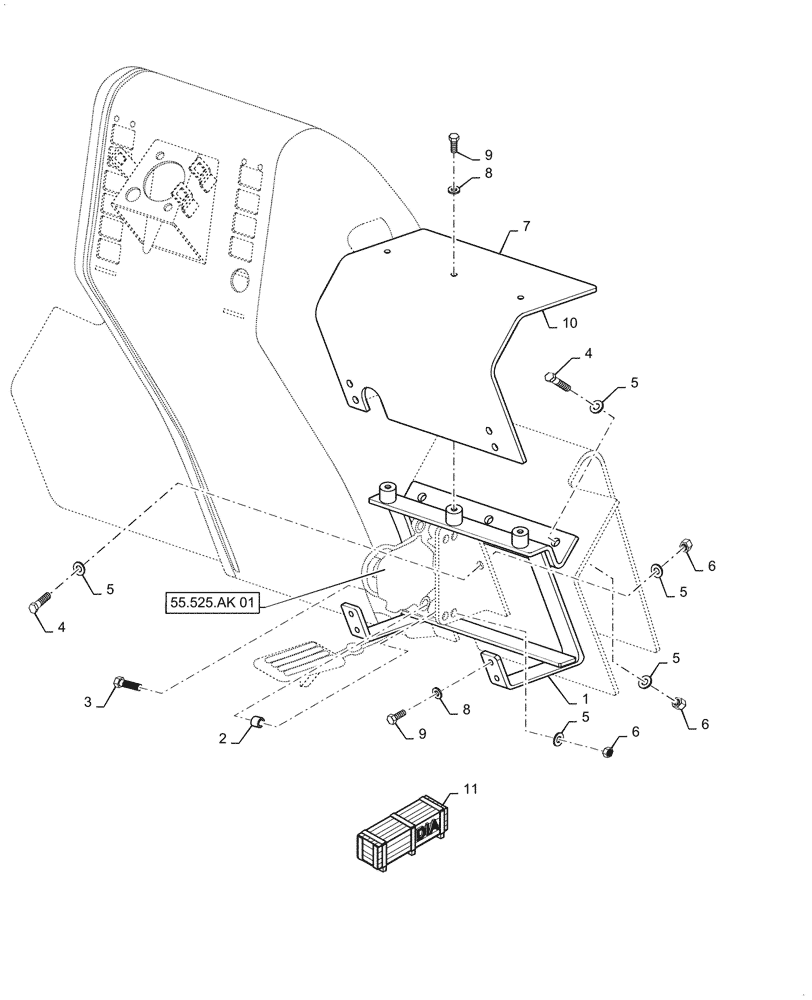

Запчасти Case IH 586H (88.100.03) - THROTTLE RELOCATION (88) - ACCESSORIES

1

47595497

BRACKET

1шт.

2

47613117

Throttle Bracket

SPACER

2шт.

3

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

68841

NUT,M8 x 1.25, Cl 8

6шт.

7

47595500

Throttle

COVER

1шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

9

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

7шт.

10

47614745

Self Gripping Edge

TRIM

2шт.

11

47612048

DIA, Throttle Relocation, Incl 1 - 10

KIT

1шт.
