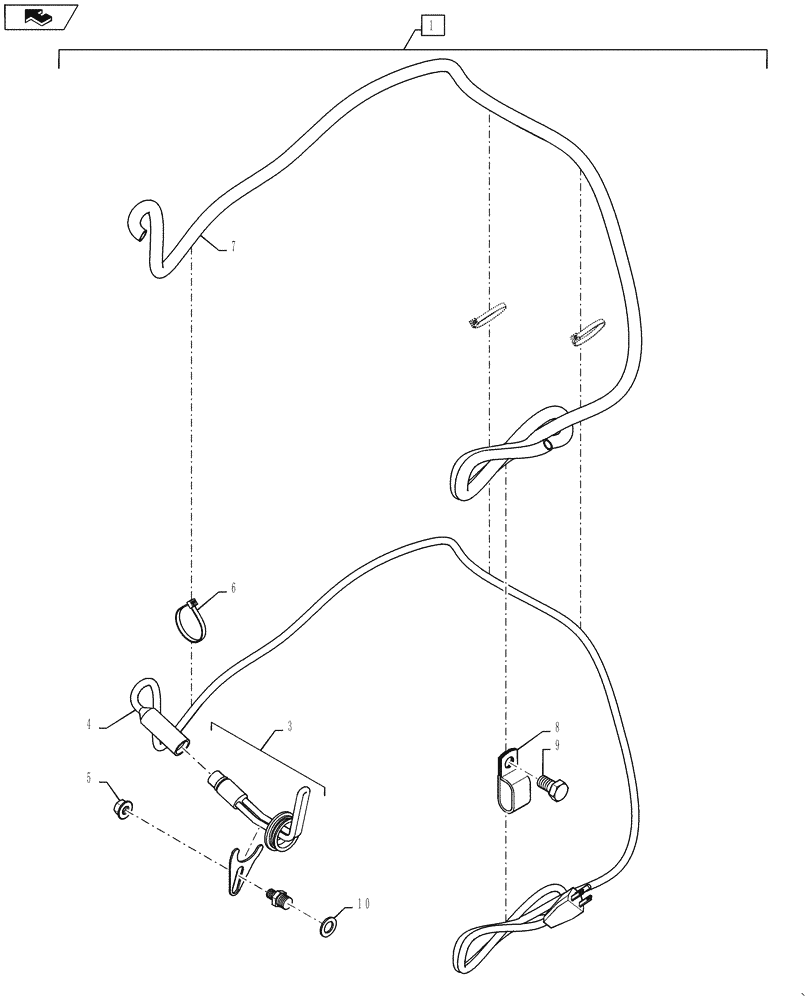

Запчасти Case IH 586H (88.100.01) - DIA KIT BLOCK HEATER (88) - ACCESSORIES

1

84562926

CONSTRUCTION DIA

Block Heater

1шт.

2

84562935

INSTRUCTION

DIA Kit Block Heater ( Not Shown )

1шт.

3

87693857

HEATER,820W - 120V

Assembly

1шт.

4

87693858

CABLE,Heater, 820W - 120V

Block Heater

1шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 , Black

3шт.

7

84546269

Hose

GUARD,10.5mm ID x 1975mm L

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

Double

1шт.

9

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

10

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.
